If you are looking for an external portable drive that is fast, reliable, and super compact, then getting an M.2 2230 SSD Enclosure and an M.2 2230 NVMe SSD is one of the best solutions. M.2 2230 SSD is the smallest NVMe solid state drive you can get for portable computers, consoles, slim laptops, or external storage needs. A high-performance M.2 2230 NVMe SSD paired with a high-quality M.2 2230 SSD Enclosure can make an excellent portable SSD for your data transfer needs. It is a great USB Flash Drive/USB Stick alternative because the M.2 2230 Enclosure is ultra-portable, and, like a USB Flash Drive, you can carry it in your pocket. M.2 2230 Enclosure (with SSD) offers various advantages over traditional USB Flash Drives, M.2 2280 SSD Enclosures, and External Hard Drives that are being mentioned below.
M.2 2230 NVMe SSD Enclosure Advantages
Below are the main advantages of using a M.2 2230 SSD in a M.2 2230 SSD Enclosure for external drive use.
Portable and Lightweight – M.2 2230 SSD Enclosure is highly portable and easy to carry compared to an external hard drive or M.2 2280 SSD Enclosure. You can easily carry an M.2 2230 SSD Enclosure in your pocket, even if the pocket is smaller. M.2 2230 SSD Enclosure (with SSD) is also very lightweight compared to an external hard drive.
Faster Data Transfer Speed – M.2 2230 NVMe SSD is way faster than a standard USB Flash Drive / USB Stick or an External Hard Drive. With a USB Flash Drive or External Hard Drive, you can expect Read/Write Speed to up to 160/140 MB/s, but a PCIe Gen4 M.2 2230 NVMe SSD can have Read/Write Speed to up to 7000/6000 MB/s. However, you won’t get such high read/write speeds with an M.2 2230 SSD Enclosure because of the speed limitation of the USB interface. Most enclosures include a USB 3.2 Gen2x1 or USB 3.1 Gen2 port or interface with a maximum transfer speed of 10 Gbps (1250 MB/s).
Higher Storage Capacity – You can get enough storage capacity with an M.2 2230 SSD. The maximum available capacity for an M.2 2230 NVMe SSD is 2TB, which is more than enough for an external storage drive. On the other hand, the maximum capacity of a standard USB Flash Drive is 1TB. Though 2TB high-performance USB Flash Drives are available (based on NVMe SSD design), they can be pretty expensive and larger.
Reliable – M.2 2230 SSD with Enclosure is more reliable than an external hard drive. It is shockproof and less prone to magnetic interference than an external HDD.
Scalable – If you need more storage space in the future, then you can easily increase the storage capacity by upgrading to a higher capacity M.2 2230 NVMe SSD in your M.2 2230 SSD Enclosure.
Flexibility / Reusable – With an M.2 2230 SSD Enclosure, you have the choice to buy the SSD of your choice and brand for maximum performance and reliability. On the other hand, in a prepackaged or prebuilt External M.2 2230 SSD, you cannot replace the SSD and must use the one included with the enclosure. Additionally, with a separate M.2 2230 SSD Enclosure, you can replace the SSD if it encounters issues or nears the end of its lifespan. Moreover, if you don’t need the external drive, you can remove the SSD from the enclosure and use it in your portable computers/ devices, laptops, etc. You can also check the critical parameters of the SSD, like temperature, health, etc., in real-time using SSD utilities like CrystalDiskInfo, Hard Disk Sentinel, etc.
Supports Multiple Devices – An M.2 SSD enclosure supports multiple devices, including PCs, Laptops, Android smartphones, iPhones, and Portable Computers.
| M.2 2230 SSD Enclosure + SSD | USB Flash Drive | External Hard Drive | |
| Read/Write Speed | Super-Fast | Slower | Slow |
| Storage Capacity | High | Medium to High | Highest |
| Reliability | High | Lower | High |
| Scalability | Scalable | NA | NA |
| Portability | Very Portable | Very Portable | Relatively Less Portable |
| Lifespan | High | Lower | High |
| Cost / Price | Higher | Lower | High |
What M.2 2230 SSD Enclosure to Choose?
Choosing the proper M.2 2230 SSD Enclosure for your specific requirements is essential to avoid issues with your work afterward. Also, it is always better to use a metal M.2 2230 SSD Enclosure for better heat dissipation, as M.2 2230 SSDs can get very hot during large data transfers. Also, a few M.2 2230 SSD enclosures include an integrated fan for active cooling.
For mobile phones and iPhones, consider a magnetic M.2 2230 SSD Enclosure. A magnetic M.2 2230 SSD Enclosure is compact and features a magnetic base that attaches to a magnetic phone case for convenience and mobility during on-the-go video recording.
Some M.2 2230 SSD enclosures include an integrated USB cable; in others, the USB cable is detachable. Some enclosures also include an integrated USB connector, similar to a USB Stick or Thumb Drive. This also plays an important role when purchasing an enclosure, as each has its own use, applications, and importance.
There are many M.2 2230 SSD Enclosures available from various brands, but not all are high-quality. Here, I will list the best M.2 2230 SSD Enclosures from reputable brands for the specific use case.
Best M.2 NVMe 2230 SSD Enclosures
Below are the best M.2 2230 SSD Enclosures for M.2 2230 NVMe SSDs.

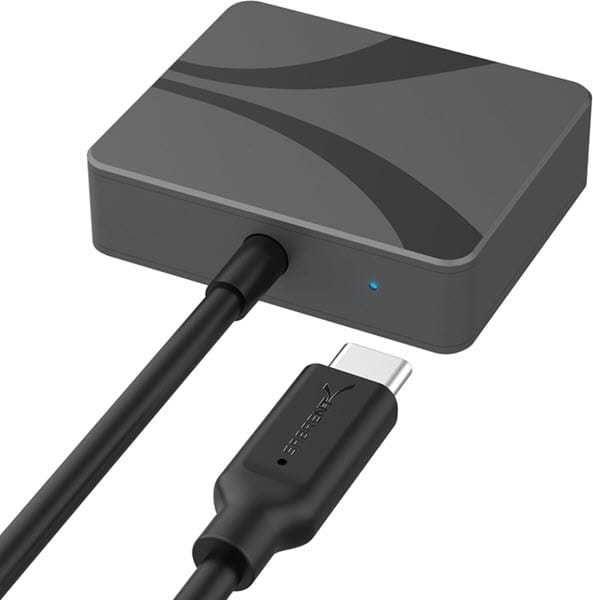

SABRENT M.2 2230 PCIe NVMe SSD Enclosure
[Good Build and Performance, Easy Installation]
SABRENT is one of the biggest names in SSD heatsinks, enclosures, and Adapters. Here we have a USB-C Enclosure for M.2 2230 PCIe NVMe SSDs. It is compact and is made of aluminum and ABS plastic for portability, ruggedness, and better heat dissipation. The enclosure includes an integrated USB Type-C cable and supports the USB 3.2 Gen2 10Gbps interface. The installation of the M.2 2230 NVMe SSD is simple, with a latch mechanism that requires no screws.
The SSD enclosure supports UASP and TRIM and is plug-and-play, requiring no additional drivers. It is bus-powered, requiring no additional power source. A blue LED status indicator indicates the drive’s activity status. It supports Windows, macOS, and Linux. The model number of this M.2 2230 SSD Enclosure is EC-NE30.
| SABRENT M.2 2230 SSD Enclosure Specifications | |
| Form Factor | M.2 2230 |
| SSD Support | M.2 2230 NVMe SSD |
| Interface | USB 3.2 Gen2x1 10Gbps (Type-C) [Integrated Cable] |
| Features | UASP and TRIM support, LED Status Indicator, Aluminum and ABS Construction, Auto Sleep |
| OS Compatibility | Windows, macOS, Linux |
Buy SABRENT M.2 2230 NVMe SSD Enclosure

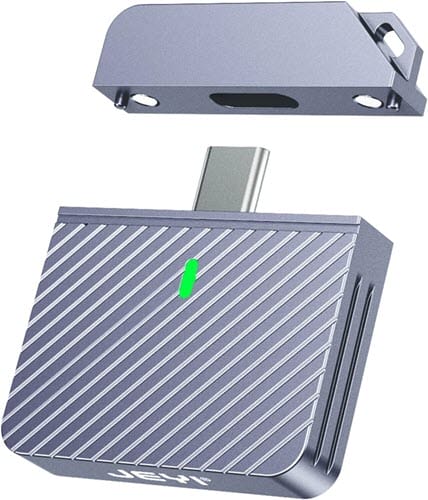

JEYI Zebra-2230C M.2 SSD Enclosure
[Direct Attach Enclosure, Aluminum Casing, Magnetic Cover]
JEYI Zebra-2230C is a Direct Attached SSD Enclosure that does not come with any wires and cables. Like a traditional USB stick, it includes a USB Type-C male connector at the end for connecting to devices. It supports the USB 3.1 Gen2 interface with a maximum data transfer rate of 10Gbps. The enclosure supports M.2 2230 NVMe SSD (M-Key, B&M-Key) up to 2TB capacity. It uses the Realtek RTL9210 bridge controller chip to convert the USB Interface to PCIe (NVMe) or SATA.
The enclosure casing is made of aluminum to enable faster, more efficient heat dissipation. The front cover that protects the USB connector is magnetic for super easy removal and insertion. It supports UASP and TRIM for maximizing the performance and health of the SSD. Other features include an LED Status Indicator and a lanyard hole. The operating systems supported by the enclosure include Windows, Mac, and Linux.
| JEYI Zebra-2230C M.2 SSD Enclosure Specifications | |
| Form Factor | M.2 2230 |
| SSD Support | M.2 2230 NVMe SSD (up to 2TB) |
| Interface | USB 3.1 Gen2 (10Gbps) USB Type-C [Integrated USB Connector] |
| Features | UASP and TRIM support, Direct Attached SSD Enclosure, LED Status Indicator, Aluminum Case, Lanyard |
| OS Compatibility | Windows, macOS, Linux |
Buy JEYI Zebra-2230C M.2 SSD Enclosure

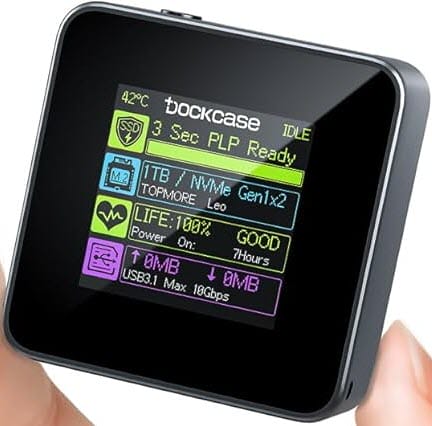

Dockcase Pocket Smart 2230 M.2 NVMe SSD Enclosure
[LCD Screen, Power Loss Protection, Write Protect, Ultra Compact]

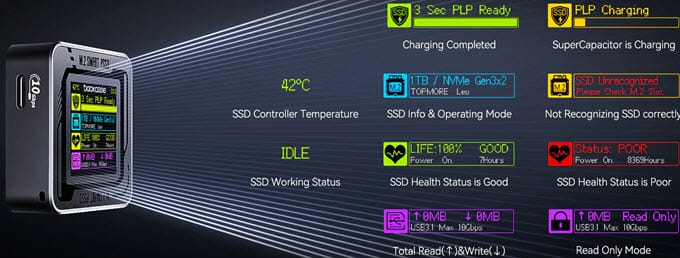

If you are looking for a fancy and feature-rich M.2 2230 SSD Enclosure, then Dockcase Pocket Smart 2230 M.2 NVMe SSD Enclosure is what you should get. It is a smart SSD enclosure that includes a 1.33-inch LCD Screen that displays key information about your SSD, including controller temperature, PLP capacitor charging status, SSD health, read/write speed, and more. The information and options on the LCD screen can be cycled and changed using the D-Key button.
The enclosure also includes 3-second Power Loss Protection (PLP) in case of abnormal power failure. PLP is a critical feature that protects your data in the event of a sudden power loss. PLP is generally found in expensive enterprise-class SSDs. For PLP, the SSD Enclosure includes a supercapacitor that can be charged by connecting the SSD to a computer’s USB port. The enclosure also includes a write-protect (read-only) mode to protect your sensitive data from accidental deletion/modification, malware, or viruses.
The smart enclosure is compact, supports M Key and B&M Key M.2 NVMe/PCIe SSDs, and features a USB 3.2 Gen2 (10 Gbps) Type-C port. The enclosure supports UASP and TRIM. For cooling, the enclosure comes with an aluminum alloy fins heatsink for faster heat dissipation. The enclosure supports a wide range of operating systems, including Windows, macOS, iOS, Android, Linux, and ChromeOS. The enclosure is available in three color options: black, grey, and silver.
| Dockcase Pocket Smart 2230 M.2 NVMe SSD Enclosure Specifications | |
| Form Factor | M.2 2230 |
| SSD Support | M.2 2230 NVMe SSD (up to 2TB) |
| Interface | USB 3.2 Gen2x1 (10Gpbs) Type-C [Removable USB Cable] |
| Features | LCD Display Screen, UASP and TRIM support, Aluminum Alloy Fins Heatsink Cover, Power Loss Protection (PLP), Upgradable Firmware, Graphite Thermal Pad |
| OS Compatibility | Windows, Mac, iOS, Android, Linux, ChromeOS |
Buy Dockcase Pocket Smart 2230 M.2 SSD Enclosure

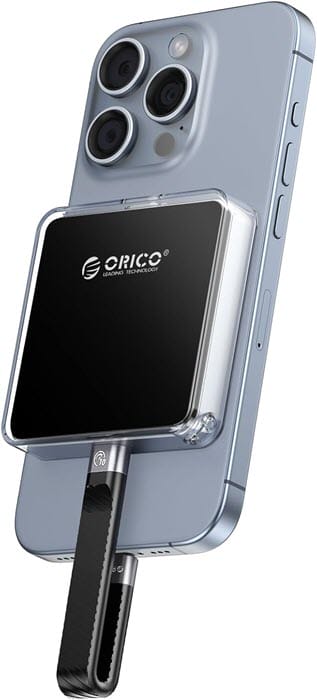

ORICO Magnetic M.2 2230 SSD Enclosure
[Magnetic Enclosure, MagSafe Compatible, Multiple Colors Available]
A Magnetic M.2 2230 SSD Enclosure from ORICO for use with iPhones and Smartphones. ORICO is widely recognized for SSD Enclosures, Docks, and Portable SSDs. ORICO Magnetic M.2 2230 SSD Enclosure is compatible with Apple’s MagSafe technology and supports iPhone 15 Pro/Pro Max and higher for direct 4K ProRes video storage, eliminating transfer delays and memory concerns. For phones without a magnetic case, the enclosure includes a magnetic ring that you can attach to the back of the phone or to phone covers. The enclosure is made of aluminum alloy and ABS. A TPU cover is included with the enclosure for protection.
The magnetic enclosure features a USB 3.2 Gen2x1 (10 Gbps) Type-C port for device connectivity. It is lightweight and compact, and includes a lanyard. The operating systems supported by the enclosure are Windows, Linux, and Mac OS. The enclosure is available in three attractive colors, including black, green, and blue.
| ORICO Magnetic M.2 2230 SSD Enclosure Specifications | |
| Form Factor | M.2 2230 |
| SSD Support | M.2 2230 NVMe SSD (up to 2TB) |
| Interface | USB 3.2 Gen2x1 (10Gpbs) Type-C [Removable USB Cable] |
| Features | UASP and TRIM support, Aluminum Alloy + ABS + TPU protector, Magnetic Attachment, Auto Sleep |
| OS Compatibility | Windows, Linux, Mac OS |
Buy ORICO Magnetic M.2 2230 SSD Enclosure
Another Good Magnetic M.2 2230 Enclosure

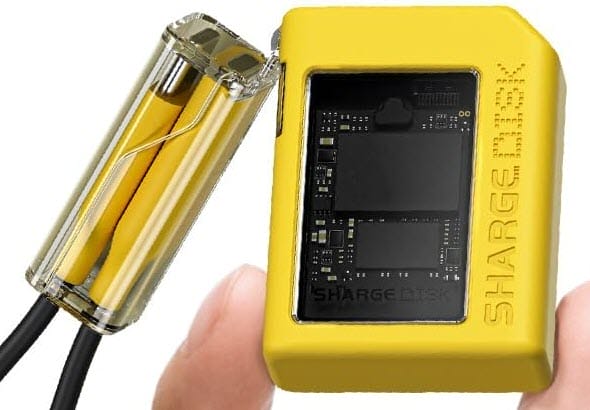

SHARGE Disk M.2 2230 NVMe SSD Enclosure
[Active Cooling Fan, Faster Heat Dissipation, IP54 Protection, Write Protection, Cable Free]

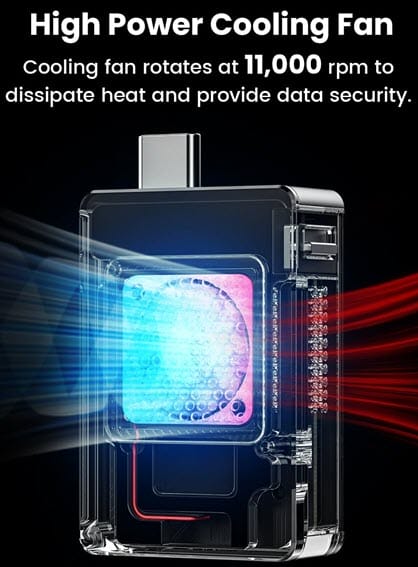

If you are looking for an M.2 2230 NVMe SSD Enclosure with an active cooling solution, the SHARGE Disk M.2 2230 NVMe SSD Enclosure is the perfect choice. The enclosure comes with a small fan that spins at a maximum speed of 11000 RPM and cools down the M.2 2230 NVMe SSD from getting too hot (overheating). The fan can cool down the SSD by up to 20°C when running. The enclosure is compact and lightweight, and it includes a silicone case for protection. Also, the enclosure features 6.56ft of Anti-Fall Protection and IP54 Protection.
The enclosure supports the USB 3.2 Gen2 (10 Gbps) interface and includes a built-in USB Type-C port. The SSD installation in the enclosure is tool-free, and the enclosure supports write protection to keep your data safe from accidental deletion, unauthorized tampering, or viruses. The enclosure supports Windows, macOS, and Linux and is compatible with desktop PCs, MacBooks, Windows Laptops, Steam Deck, ROG Ally, PS5, Xbox, iPad Pro, smartphones, and SLR cameras (external recording supported). The enclosure is available in two colors: yellow and gray.
| SHARGE Disk M.2 2230 NVMe SSD Enclosure | |
| Form Factor | M.2 2230 |
| SSD Support | M.2 2230 NVMe SSD (up to 2TB) |
| Interface | USB 3.2 Gen2x1 (10Gpbs) Type-C [USB Connector] |
| Features | 6.56ft Anti-fall & IP54 Protection, UASP and TRIM support, Write protection, Tool-free SSD assembly, Silicone Case Included, Lanyard |
| OS Compatibility | Windows, Linux, Mac OS |
Buy SHARGE Disk M.2 2230 NVMe SSD Enclosure

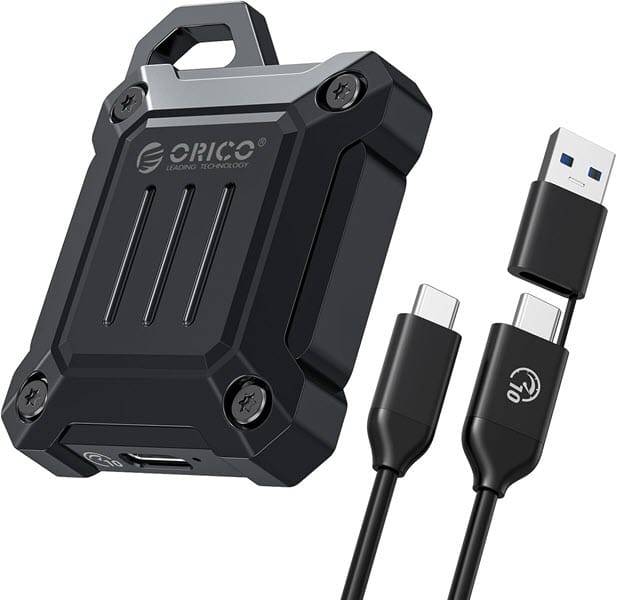

ORICO Full Metal M.2 NVMe 2230 SSD Enclosure
[Rugged Build Quality (Full Metal Casing), Better Heat Dissipation]
A rugged, tough, and durable M.2 NVMe 2230 SSD Enclosure for indoor and outdoor needs. The ORICO-XAM2 Enclosure is a full-metal enclosure made of zinc alloy. It is compatible with iPhone 15 Pro/Pro Max, allowing direct external storage of 4K ProRes videos, perfect for outdoor shooting with your smartphone. The enclosure comes with a USB 3.2 Gen2x1 (10Gpbs) Type-C Port and a 2-in-1 Cable, a 30cm USB Type-C to Type-C/Type-A cable for connecting to a variety of devices.
The SSD enclosure supports Windows, Linux, macOS, Android, and iOS. The full-metal case improves heat dissipation and accelerates cooling of the M.2 2230 SSD. The enclosure supports UASP and TRIM and includes a carrying hook and lanyard for easy portability. The model number of this enclosure is ORICO-XAM2.
Note: To enable ProRes recording of 4K 60fps videos on the iPhone 15 Pro series (and higher), you need to format the SSD as exFAT or APFS.
| ORICO Full Metal M.2 NVMe 2230 SSD Enclosure Specifications | |
| Form Factor | M.2 2230 |
| SSD Support | M.2 2230 NVMe SSD (up to 2TB) |
| Interface | USB 3.2 Gen2x1 (10Gpbs) Type-C Port |
| Features | UASP and TRIM support, Full Metal Construction (Zinc Alloy), Lanyard, Carrying Hook, Military Grade Toughness |
| OS Compatibility | Windows, Linux, Mac OS, Android, iOS |
Buy ORICO Full Metal M.2 NVMe 2230 SSD Enclosure
Other Good M.2 2230 SSD Enclosures
- MAIWO M.2 2230 SSD Enclosure [NVMe + SATA]
- Hagibis 2230 M.2 NVMe SSD Enclosure with Cooling Fan
- fanxiang M.2 2230 NVMe SSD Enclosure
Final Words
M.2 2230 SSD Enclosures are a great way to make an external portable SSD for indoor and outdoor use. They can be used with multiple devices, including PCs, Laptops, smartphones, iPhones, Portable Computers, etc. They offer greater flexibility and are more scalable than pre-built portable SSDs. If you have any queries regarding the M.2 2230 NVMe SSD enclosure, then do let me know in the comment section below
