RTX 5060 is a budget mid-range or mainstream graphics card launched by Nvidia in the GeForce RTX 50 series. The card sits below the RTX 5060 Ti and is perfect for 1080p and Esports gaming. Like its bigger brothers, the card has the latest features and new hardware capabilities. On average, the RTX 5060 is around 2 to 3 percent faster than the RTX 4060 Ti (8GB/16GB) at 1080p and 1440p gaming, 25 percent faster than the RTX 4060, and around 19 percent faster than the AMD Radeon RX 7600 XT.
GeForce RTX 5060 is built on Nvidia’s Blackwell GPU architecture on a 5nm TSMC manufacturing process. It uses the GB206 GPU chip and has 3840 CUDA Cores, 30 RT Cores (4th Generation), and 120 Tensor Cores (5th Generation). It comes with 8GB GDDR7 memory with a 128-bit interface. The memory runs at a speed of 28 Gbps and generates a bandwidth of 448 GB/s. The card supports DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4, PCI-Express 5.0 (x8), Real-Time Ray Tracing, HDMI 2.1b, DisplayPort 2.1b, G-Sync, AV1 Hardware Encoding/Decoding, Deep Learning Super Sampling (DLSS 4). The maximum power consumption of the card is 145W, and it uses an 8-pin PCIe connector for power. Below are the best value and small form factor (SFF) RTX 5060 models for users on tight budgets or space constraints.
Best Budget RTX 5060 Models

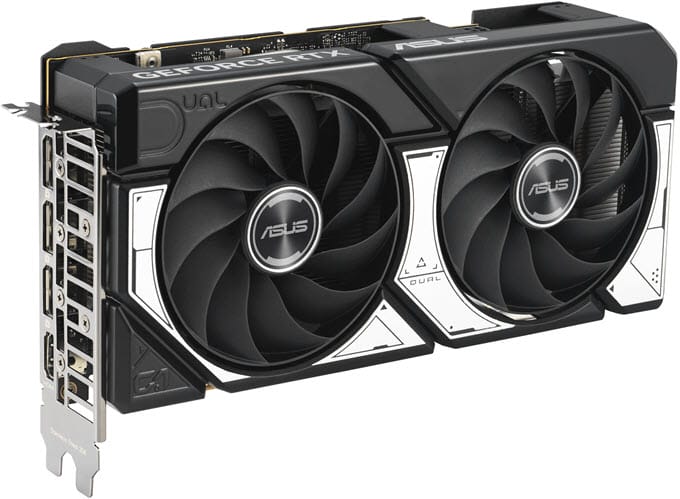

ASUS Dual GeForce RTX 5060 OC
[Base MSRP Pricing, Dual BIOS, Good Build Quality, Factory Overclocked]
ASUS Dual GeForce RTX 5060 OC is one of the best budget RTX 5060 models you can get at the base MSRP or very close to it. The card has good build quality, a big cooler, and many features that are generally not found in the base models of the cards. It is an overclocked edition RTX 5060 model with a GPU Boost Clock of 2535 MHz, 38 MHz more than the reference model. The GPU Boost Clock can be set to 2565 MHz in OC mode using Asus GPU Tweak III software. The cooler on this card uses an aluminum heatsink with two copper heatpipes and two Axial-Tech fans. The fans come with dual-ball bearings and have longer blades to improve airflow and dispersion. The 0dB Technology provides semi-passive cooling and stops the fans from spinning when the GPU temperature drops below 50 degrees, and power consumption is low. The card also comes with Dual BIOS (Performance and Quiet modes), and you can switch between the two modes via a small toggle switch on the side of the card.
The card is 228mm long and has a 2.5-slot design. A vented backplate protects the card and helps air pass through for cooling. The card features a 304 Stainless Steel Bracket, which is harder and more corrosion-resistant. The card uses an 8-pin PCIe connector for power, and the manufacturer recommends a 550W PSU. Display connectivity options include one HDMI 2.1b port and three DisplayPort 2.1b ports.
| ASUS Dual GeForce RTX 5060 OC Specifications | |
| CUDA Cores | 3840 |
| RT Cores | 30 (4th Generation) |
| Tensor Cores | 120 (5th Generation) |
| GPU Clock | 2535 MHz Boost |
| Memory Clock | 28 Gbps |
| Memory Size | 8 GB GDDR7 |
| Memory Interface | 128-bit |
| Bus Interface | PCI Express 5.0 (x8) |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| PCI-E Power Connector | 8-pin x 1 |
| Output Ports | HDMI 2.1b x 1, DisplayPort 2.1b x 3 |
Buy ASUS Dual GeForce RTX 5060 OC

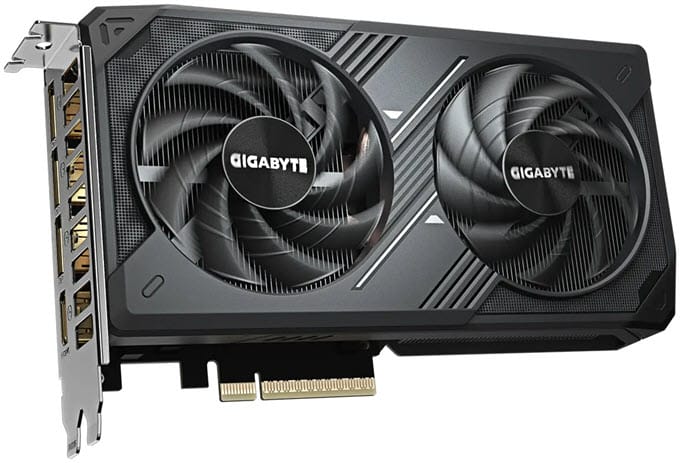

GIGABYTE GeForce RTX 5060 WINDFORCE OC 8G
[Alternate Spinning Fans, Compact Dual-slot Design, Good Build and Performance]
A very good budget RTX 5060 model from Gigabyte. It comes factory overclocked, has good build quality, runs cool, is compact, and has all essential features. GIGABYTE GeForce RTX 5060 WINDFORCE OC 8G has a GPU Boost clock of 2512 MHz, 15 MHz more than the reference design. The WINDFORCE cooling system of the card uses an aluminum heatsink with two copper heatpipes, a copper base plate for the GPU and VRAM, and two Hawk fans. The fans spin in alternate directions to reduce air turbulence and feature a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels and increases the air pressure to 53.6% and air volume to 12.5% without increasing the noise. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU load is low. The fans start automatically when the GPU temperature increases with load.
The can is 199mm in length and has a dual-slot design. A vented backplate protects the card against damage and helps in cooling (screen cooling) by allowing air to pass through. Using the GIGABYTE CONTROL CENTER (GCC), you can adjust clock speed, voltage, fan mode, and power target in real time. The card uses a single 8-pin PCIe connector for power and requires only a 450W PSU. Display connectivity options include three DisplayPort 2.1b ports and one HDMI 2.1b port. The card is priced slightly more than the base MSRP.
| GIGABYTE GeForce RTX 5060 WINDFORCE OC 8G Specifications | |
| CUDA Cores | 3840 |
| RT Cores | 30 (4th Generation) |
| Tensor Cores | 120 (5th Generation) |
| GPU Clock | 2512 MHz Boost |
| Memory Clock | 28 Gbps |
| Memory Size | 8 GB GDDR7 |
| Memory Interface | 128-bit |
| Bus Interface | PCI Express 5.0 (x8) |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| PCI-E Power Connector | 8-pin x 1 |
| Output Ports | HDMI 2.1b x 1, DisplayPort 2.1b x 3 |
Buy GIGABYTE GeForce RTX 5060 WINDFORCE OC 8G
Another Good Value RTX 5060 Model
Single Fan Compact RTX 5060

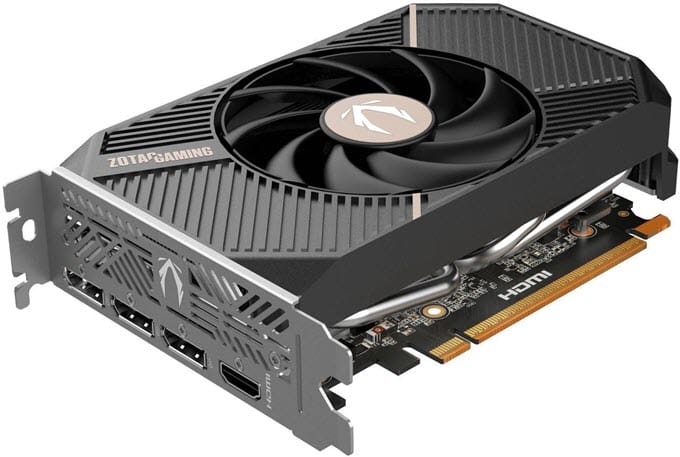

ZOTAC GAMING GeForce RTX 5060 SOLO
[Very Compact, Runs Cool and Quiet, Cheapest RTX 5060 model]
ZOTAC GAMING GeForce RTX 5060 SOLO is one of the most compact RTX 5060 models and uses a single-fan design. The card is 165mm in length and has a dual-slot design. It is a non-overclocked model and comes with reference GPU Boost Clock speeds. The card uses an aluminum fins heatsink with three copper heatpipes and a single fan for cooling. Even with a single fan, the card runs cool and quiet in operation. The card does not come with semi-passive cooling and lacks a backplate. It uses a single 8-pin PCIe connector for power, and the recommended PSU is 550W. The display output ports on the card consist of three DisplayPort 2.1b ports and one HDMI 2.1b port. It is a base MSRP RTX 5060 model and one of the cheapest RTX 5060 models on the market.
| ZOTAC GAMING GeForce RTX 5060 SOLO Specifications | |
| CUDA Cores | 3840 |
| RT Cores | 30 (4th Generation) |
| Tensor Cores | 120 (5th Generation) |
| GPU Clock | 2497 MHz Boost |
| Memory Clock | 28 Gbps |
| Memory Size | 8 GB GDDR7 |
| Memory Interface | 128-bit |
| Bus Interface | PCI Express 5.0 (x8) |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| PCI-E Power Connector | 8-pin x 1 |
| Output Ports | HDMI 2.1b x 1, DisplayPort 2.1b x 3 |
Buy ZOTAC GAMING GeForce RTX 5060 SOLO
Another Single Fan Compact RTX 5060
- MSI GeForce RTX 5060 8G INSPIRE ITX OC [145mm Length]
Low Profile RTX 5060

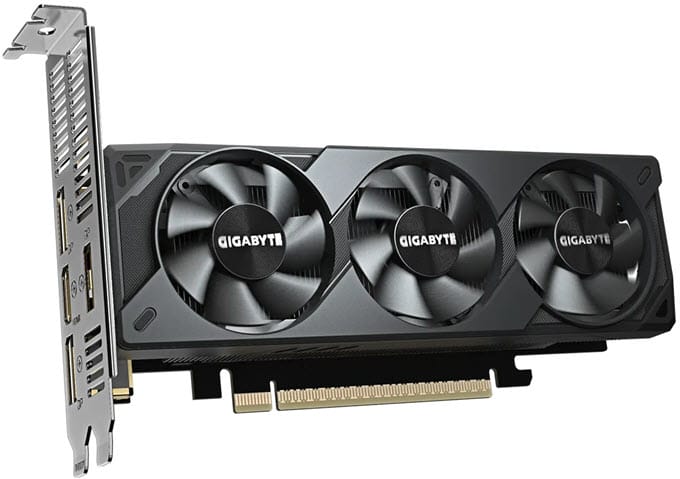

GIGABYTE GeForce RTX 5060 OC Low Profile 8G
[Low Profile Dual-slot Compact Design, Triple Fans]
The only low-profile RTX 5060 model for use in Slim Form Factor PC Cases or Systems with low-profile expansion slots or brackets. GIGABYTE GeForce RTX 5060 OC Low Profile 8G comes slightly overclocked from the factory and has a GPU Boost Clock of 2512 MHz, 15 MHz more than the reference design. The card is cooled by a sleek aluminum heatsink with composite copper heatpipes and three fans.
The card is only 182mm in length and has a dual-slot design. It does not come with a protective backplate. A low-profile bracket is included with the card for use in low-profile or slim PC Cases. It uses an 8-pin PCIe connector for power and needs a 450W PSU. Display connectivity options include two DisplayPort 2.1b ports, one DisplayPort 1.4a port, and one HDMI 2.1b port.
| GIGABYTE GeForce RTX 5060 OC Low Profile 8G Specifications | |
| CUDA Cores | 3840 |
| RT Cores | 30 (4th Generation) |
| Tensor Cores | 120 (5th Generation) |
| GPU Clock | 2512 MHz Boost |
| Memory Clock | 28 Gbps |
| Memory Size | 8 GB GDDR7 |
| Memory Interface | 128-bit |
| Bus Interface | PCI Express 5.0 (x8) |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| PCI-E Power Connector | 8-pin x 1 |
| Output Ports | HDMI 2.1b x 1, DisplayPort 2.1b x 2, DisplayPort 1.4a x 1 |
Buy GIGABYTE GeForce RTX 5060 OC Low Profile 8G
Other Budget RTX 5060 Models
Affordable Triple Fan RTX 5060 Model
Final Words
RTX 5060 is a mainstream budget card, and there is no point in getting an expensive or premium model as it will not offer any performance gain, and the fancy features like RGB lighting, etc., are not worth the extra price. Moreover, the triple fan design with an additional fan and big cooler is not really required because RTX 5060 is very power efficient and runs pretty cool even with a decent cooler with dual fans. So, saving money and going for a budget RTX 5060 model is an intelligent decision. Please let me know in the comment section below if you have any queries or need help regarding the GeForce RTX 5060 custom models.
