Radeon RX 9060 XT is an affordable mid-range Radeon RX 9000 series graphics card launched by AMD in 2025. RX 9060 XT sits below the RX 9070 in the Radeon RX 9000 series and is available in 8GB and 16GB memory (VRAM) configurations, while other specifications remain the same. The 16GB model offers significantly better performance than the 8 GB model, and we will discuss the 16 GB model only. The main competitors of the Radeon RX 9060 XT are the GeForce RTX 5060 and RTX 5060 Ti from Nvidia. RX 9060 XT 16GB is around 9 percent faster than RTX 5060 and around 4 to 5 percent slower than RTX 5060 Ti 16GB.
Radeon RX 9060 XT is built on the RDNA 4 architecture on a TSMC 4nm manufacturing process. It uses Navi 44 XT GPU chip and has 2048 Stream Processors, 32 Ray Accelerators, and 64 AI Accelerators. RX 9060 XT comes with 8 GB or 16 GB GDDR6 memory with a 128-bit interface. The memory runs at a speed of 20 Gbps, delivering a bandwidth of 320 GB/s. It also has a 32 MB Infinity Cache, an ultra-fast memory cache that provides much higher peak memory bandwidth for a short time. The card supports DirectX 12, OpenGL 4.6, Vulkan, AV1 Encode/Decode, Real-Time Ray Tracing, FreeSync, PCIe 5.0 (PCI-E Gen5), AMD FidelityFX Super Resolution (FSR 4), DisplayPort 2.1a, and HDMI 2.1b. The card’s maximum power consumption is rated at 160W, and it uses a single 8-pin PCIe connector for power from the PSU. Below are some of the best-value RX 9060 XT models for users on tight budgets.
Best Value Triple Fan RX 9060 XT 16GB

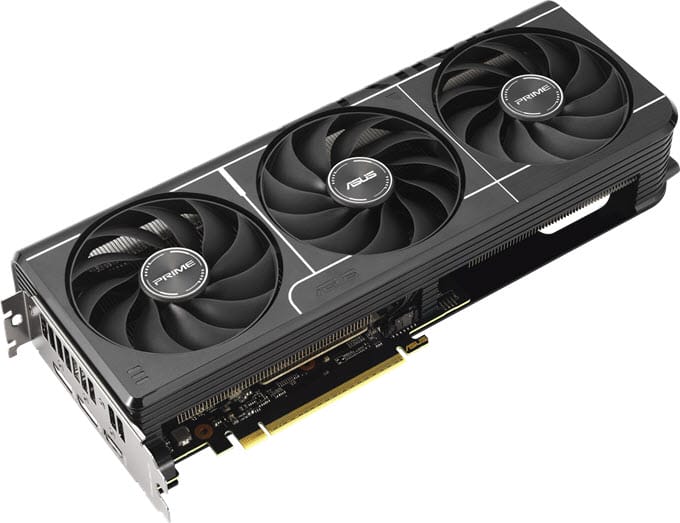

ASUS Prime Radeon RX 9060 XT 16GB GDDR6 OC
[Budget Pricing, Dual BIOS, Good Build and Clean Design, Runs Cool and Quiet]
If you are looking for a good budget triple fan RX 9060 XT 16GB model, then the ASUS Prime Radeon RX 9060 XT 16GB GDDR6 OC is the best option. The card runs silent & cool, comes packed with features, is priced competitively, and offers excellent performance. It is an overclocked edition card with high factory overclocking. It has a GPU Boost Clock of 3310 MHz, 180 MHz more than the reference card clock. The cooler on this card comes with a large aluminum heatsink with two copper heatpipes and three Axial-tech fans. The fans have dual ball bearings and a ring blade design for focused airflow and pressure. The 0dB Technology provides semi-passive cooling where all three fans stop spinning when GPU temperatures are below 55°C for completely silent operation. Fans start up again when the temperature exceeds 60°C to keep the card cool during high workloads. The card also comes with dual BIOS with Performance (P) and Quiet (Q) modes. The desired BIOS mode can be selected by a small toggle switch present on one side of the card. The card runs very cool and quiet, even under heavy workloads. In the quiet mode, the card is super silent in operation, and the fans are virtually inaudible.
The card is 304mm in length and has a 2.5-slot design. A vented metal backplate protects the card and helps cool down the VRAM chips and some VRM components on the back of the card. Aesthetically, the card looks good and has a clean design. The card uses one 8-pin PCIe connector for power, and a 550W PSU is recommended. Using the ASUS GPU Tweak III software, you can tweak critical parameters, including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real time through a customizable on-screen display. Display connectivity options include one HDMI 2.1b port and two DisplayPort 2.1a ports. The card is priced very close to the official base MSRP of the reference RX 9060 XT model.
| ASUS Prime Radeon RX 9060 XT 16GB GDDR6 OC Specifications | |
| Stream Processors | 2048 |
| Ray Accelerators | 32 |
| AI Accelerators | 64 |
| GPU Clock | 3310 MHz Boost, OC mode (GPU Tweak III): up to 3330 MHz |
| Memory Clock | 20 Gbps |
| Memory Size | 8 GB GDDR6 |
| Memory Interface | 128-bit |
| Infinity Cache | 32 MB |
| Bus Interface | PCI Express 5.0 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| PCI-E Power Connector | 8-pin x 1 |
| Output Ports | HDMI 2.1b x 1, DisplayPort 2.1a x 2 |
Buy ASUS Prime Radeon RX 9060 XT 16GB GDDR6 OC
Best Budget Dual Fan RX 9060 XT 16GB

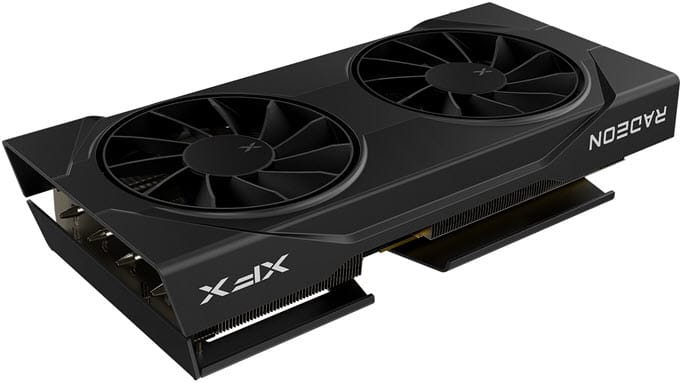

XFX Swift Radeon RX 9060 XT OC Gaming 16GB
[Budget Pricing, High Factory Overclocking, Runs Cool]
If you are looking for a good dual-fan RX 9060 XT 16GB model priced at the base MSRP or very close to it, then XFX Swift Radeon RX 9060 XT OC Gaming 16GB is the best option. The card has a large factory overclocking and a GPU Boost Clock of 3320 MHz, 190 MHz more than the reference design. The card uses an aluminum fins heatsink with four 6mm copper heatpipes and two fans for cooling. The card runs very cool, and it also comes with semi-passive cooling.
The card is 270mm long and has a 2.7-slot design. A vented metal backplate protects the card, provides structural integrity, and helps with cooling. Regarding aesthetics, it looks simple yet modern and comes in all-black color. The card uses a single 8-pin PCIe connector for power and requires a 450W PSU. Display connectivity options include one HDMI 2.1b port and two DisplayPort 2.1a ports.
| XFX Swift Radeon RX 9060 XT OC Gaming 16GB Specifications | |
| Stream Processors | 2048 |
| Ray Accelerators | 32 |
| AI Accelerators | 64 |
| GPU Clock | 3320 MHz Boost |
| Memory Clock | 20 Gbps |
| Memory Size | 8 GB GDDR6 |
| Memory Interface | 128-bit |
| Infinity Cache | 32 MB |
| Bus Interface | PCI Express 5.0 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| PCI-E Power Connector | 8-pin x 1 |
| Output Ports | HDMI 2.1b x 1, DisplayPort 2.1a x 2 |
Buy XFX Swift Radeon RX 9060 XT OC Gaming 16GB
Most Compact RX 9060 XT 16GB

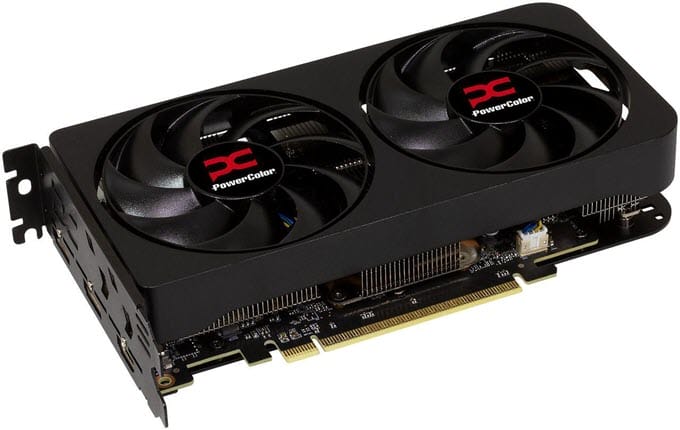

PowerColor Reaper Radeon RX 9060 XT 16GB
[Compact Dual-slot Design, Factory Overclocked, Budget Pricing]
PowerColor Reaper Radeon RX 9060 XT 16GB is the most compact RX 9060 XT 16GB model. It is a perfect card for Small Form Factor (SFF) Cases or systems. The card is only 220mm in length and has a dual-slot design. It comes factory overclocked and has a GPU Boost Clock of 3230 MHz, 100 MHz more than the reference model. The cooler on this card is sufficient to keep the temperatures in the normal range. The cooler has an aluminum heatsink with two copper heatpipes and two fans. The fans have nine blades and use a ring blade design to enhance airflow and static pressure. The Intelligent Fan Control provides semi-passive cooling, and fans stop when the GPU temperature falls below 50°C and start automatically when the GPU temperature goes above 60°C.
The card comes with a metal backplate that protects it and also helps cool the memory chips on the back side. It uses an 8-pin PCIe connector for power, and a 500W PSU is recommended. Display connectivity options include one HDMI 2.1b port and two DisplayPort 2.1a ports. The card is priced close to or at the base MSRP.
| PowerColor Reaper Radeon RX 9060 XT 16GB Specifications | |
| Stream Processors | 2048 |
| Ray Accelerators | 32 |
| AI Accelerators | 64 |
| GPU Clock | 3230 MHz Boost |
| Memory Clock | 20 Gbps |
| Memory Size | 8 GB GDDR6 |
| Memory Interface | 128-bit |
| Infinity Cache | 32 MB |
| Bus Interface | PCI Express 5.0 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| PCI-E Power Connector | 8-pin x 1 |
| Output Ports | HDMI 2.1b x 1, DisplayPort 2.1a x 2 |
Buy PowerColor Reaper Radeon RX 9060 XT 16GB
Best Dual Fan / Overall RX 9060 XT 16GB

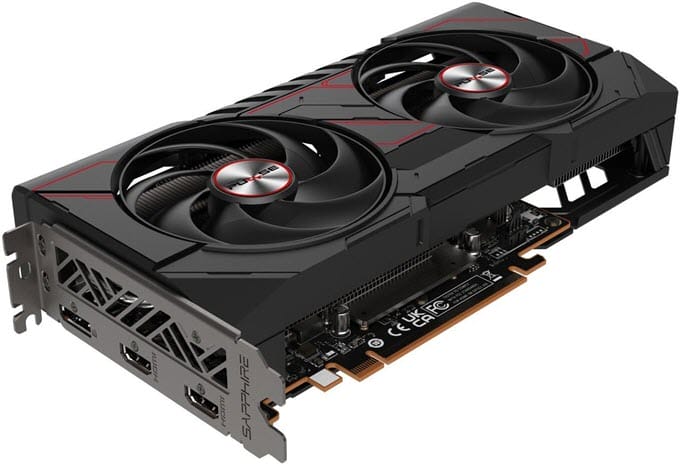

SAPPHIRE PULSE AMD Radeon RX 9060 XT 16GB
[Stylish Looks, Solid Build Quality, Great Performance, Dual HDMI 2.1b ports]
If you are looking for an all-rounder or the best overall RX 9060 XT model, then SAPPHIRE PULSE AMD Radeon RX 9060 XT 16GB is what you should get. The card has excellent overall build quality, delivers outstanding performance, runs cool & quiet, looks good, and is compact. The card comes factory overclocked and has a GPU Boost Clock of 3290 MHz, 160 MHz more than the reference design. The Dual-X Cooling system uses an aluminum heatsink with three copper heatpipes and two fans. The fans feature AeroCurve Fan Blades and have a blade ring design. The card has semi-passive cooling (Intelligent Fan Control) to balance silence and cooling.
The card is 240mm long and has a 2.3-slot design. A stylish aluminum backplate provides protection and also helps with cooling through vents. The card looks stylish and modern and uses a black and red color scheme. The card has a 9-phase Digital Power Design and uses a single 8-pin PCIe connector for power from the PSU. The card also has Fuse protection built into the circuit of the external PCI-E power connector to keep the components safe. Unlike other RX 9060 XT models with only one HDMI 2.1b port, Sapphire Pulse RX 9060 XT has two HDMI 2.1b ports and one DisplayPort 2.1a port. The card is priced slightly above the base MSRP of the reference design, but it is worth it.
| SAPPHIRE PULSE Radeon RX 9060 XT 16GB Specifications | |
| Stream Processors | 2048 |
| Ray Accelerators | 32 |
| AI Accelerators | 64 |
| GPU Clock | 3290 MHz Boost |
| Memory Clock | 20 Gbps |
| Memory Size | 8 GB GDDR6 |
| Memory Interface | 128-bit |
| Infinity Cache | 32 MB |
| Bus Interface | PCI Express 5.0 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| PCI-E Power Connector | 8-pin x 1 |
| Output Ports | HDMI 2.1b x 2, DisplayPort 2.1a x 1 |
Buy SAPPHIRE PULSE AMD Radeon RX 9060 XT 16GB
Premium RX 9060 XT 16GB Models (Triple Fan Design)
Below are the premium RX 9060 XT 16GB models with Triple Fans. These are the most overclocked RX 9060 XT 16GB models, and all come with a GPU Boost Clock of 3320 MHz, a whopping 190 MHz higher than the reference specs.
- SAPPHIRE NITRO+ AMD Radeon RX 9060 XT 16GB
- ASUS TUF Gaming Radeon RX 9060 XT 16GB GDDR6 OC Edition
- Gigabyte Radeon RX 9060 XT GAMING OC 16G
- ASRock AMD Radeon RX 9060 XT Steel Legend 16GB OC
- XFX Mercury AMD Radeon RX 9060 XT OC Gaming Edition 16GB
Queries and Help?
If you need help with any RX 9060 XT 16GB model, please post your questions in the comment section below.
