Innovations in PC Cases have been progressing significantly over the past few years. PC Cases have evolved considerably in terms of airflow, thermal performance, aesthetics, features, modularity, and internal space management and design. Dual Chamber layout in a PC Case is one of the latest designs that offers extra benefits over regular or standard PC Cases.
What is a Dual Chamber PC Case?

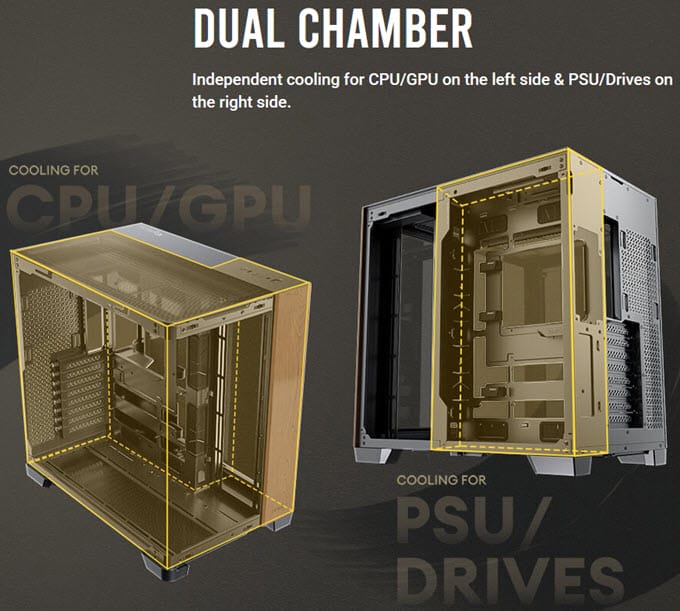

A dual-chamber PC Case is a Computer Case whose internal space is partitioned into two chambers for different sets of components. The internal space in Dual-chamber PC Cases is divided into left and right partitions, with one partition used for the CPU, GPU, Motherboards, Case Fans, Radiator, and CPU Cooler, and the other for the Power Supply Unit (PSU) and Storage Drives behind the motherboard. A PC Case with a dual-chamber layout allows separate cooling for the CPU/GPU on the left side and the PSU/Drives on the right side.
Compared to single-chamber or standard PC Cases, dual-chamber computer chassis offer several benefits and a few minor disadvantages, which are mentioned below.
Advantages of Dual Chamber PC Cases
Below are the major benefits and pros of Dual-chamber PC Cases.
Better Airflow and Cooling – With separate chambers for different components, heat is distributed evenly rather than localized in one particular spot. Moreover, in dual-chamber PC Cases, there is independent cooling and airflow for CPU/GPU and PSU/Drives for better overall cooling performance.
Extra Cooling for Graphics Card – In Dual-chamber PC Cases, the PSU and Storage Drives reside in separate chambers, leaving space at the bottom for installing fans. The bottom fans are generally installed in an intake airflow configuration, blowing air directly onto the graphics card to provide additional cooling.
Better Cable Management – In dual-chamber PC Cases, cable management is a lot better compared to standard layout PC Cases. In dual-chamber PC Cases, there is ample space in the chamber where the PSU and Drives are installed, allowing you to tuck the cables with minimal effort.
Cleaner Build – A PC with a dual-chamber case looks a lot cleaner, more roomy, and aesthetically pleasing compared to a PC with a standard computer case layout.
Ease of Building – Installing components in a Dual-chamber PC Case is relatively easy. Due to the dual-chamber layout design, there is extra room for each larger component on the left side, ensuring everything is not cramped like in standard PC Case Designs.
Disadvantages of Dual Chamber PC Cases
Below are a few disadvantages or cons of Dual-chamber PC Cases.
Wider and Heavier – Dual Chamber PC Cases are significantly broader and can be heavier than most traditional PC Cases with a standard design layout. This can be an issue for users who have space constraints and are looking for a compact and portable PC Case for their build.
Expensive – Dual Chamber PC Cases can be more costly compared to standard PC Cases with the same form factor, features, and build quality.
Boxy Design – Almost all Dual-chamber PC Cases have a boxy design, which can be an issue for users who are looking for something more stylish and trendy computer cases.
Mid-tower Dual Chamber PC Cases
Below are the best mid-tower dual-chamber computer cases that support up to E-ATX form factor motherboards.

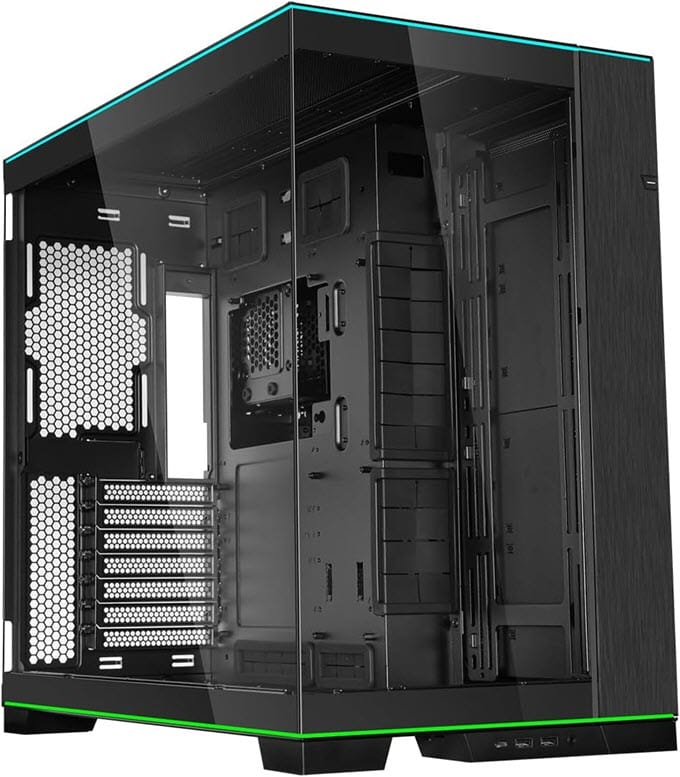

Lian Li O11 DYNAMIC EVO RGB Dual Chamber PC Case
[Feature Rich, Great Looks, ARGB Lighting, Reversible Chassis, Vertical GPU support, Adjustable Motherboard Installation]
Lian Li O11 DYNAMIC EVO RGB is one of the best dual-chamber PC cases, offering many features, ample space, and a fantastic look. It is a slightly bigger mid-tower case that can support up to E-ATX motherboards. The Case comes with two L-shaped ARGB LED strips at the top and bottom, which look amazing when lit. The ARGB LED lighting can be controlled using the buttons present on the front right side of the Case. The front USB ports include two USB 3.0 and one USB 3.1 Type-C port.
The Case has good airflow and supports up to 10 Case fans (120mm/140mm). The PC Case offers a panoramic view of your components with its tempered glass front and side panels. It is a reversible chassis, allowing you to flip the case layout to the right side with a few adjustments. This means the tempered glass will be shifted to the right side of the Case, with the motherboard facing the right panel. Moreover, it also features adjustable motherboard installation at two heights (upper or lower) to accommodate different builds.
The Case can accommodate 167mm tall CPU Coolers, 455mm long graphics cards, 420mm radiators, and ATX PSUs (under 220mm). The Case supports up to eight storage drives (HDD/SSD) and has enhanced cable management. Other features of the Lian Li O11 DYNAMIC EVO RGB Case include a built-in anti-sag GPU bracket, vertical GPU mounting support, quick-release fan brackets, the ability to support additional I/O modules at the bottom, and a dust filter (bottom). The Case is available in black and white colors.
| Lian Li O11 DYNAMIC EVO RGB PC Case Specifications | |
| Form Factor | Mid-Tower |
| Motherboard Support | E-ATX (Under 280mm), ATX, M-ATX, mini-ITX |
| Drive Bays | Side Fan Bracket: 2 × 3.5″ HDD or 4 × 2.5″ SSD
Behind MB Tray: 2 × 2.5″ SSD Hard Drive Cage：2 × 3.5″ HDD or 2.5″ SSD |
| Front I/O Ports | USB 3.0 × 2, USB 3.1 TYPE-C × 1, Audio, Color Button, Mode Button, Brightness Button, Reset Button, Power Button |
| Expansion Slots | 7 |
| CPU Cooler Height | 167mm |
| Graphics Card Length | 455.7mm |
| PSU Compatibility | ATX (under 220mm) |
| Case Fans Support | Top: 120mm × 3 or 140mm × 3 Side: 120mm × 3 or 140mm × 3 Bottom: 120mm × 3 or 140mm × 3 Rear: 120mm × 1 |
| Radiator Support | Up to 420mm |
| Other Features | ARGB LED Lighting, Tempered Glass Panels (Front/Left Side), two height-adjustable motherboard installation, vertical GPU mounting support, Cable Management, Reversible Chassis, Modular Design, I/O Ports relocation at bottom, Quick-release Fan Brackets, Customized Cable Management, built-in anti-sag GPU bracket, Mesh Right Panel |
Buy Lian Li O11 DYNAMIC EVO RGB Case

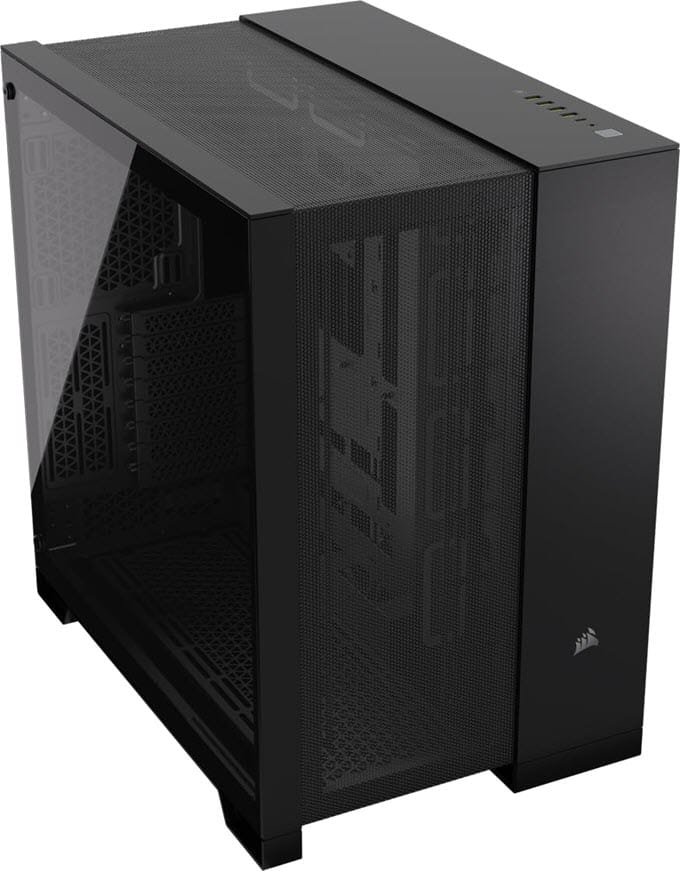

Corsair 6500D AIRFLOW Mid-Tower Dual Chamber PC Case
[High Airflow, Back-connect Motherboard support, Vertical GPU mount support, Very Spacious]
The Corsair 6500D AIRFLOW PC Case is a high-airflow, Mid-Tower dual-chamber case that supports up to E-ATX motherboards. Most dual-chamber PC Cases in the market come with a tempered glass front panel, but the Corsair 6500D Airflow PC Case features mesh front, top, right, and bottom panels for unrestricted airflow and enhanced cooling performance. The left panel is tempered glass to showcase your components. The Case can accommodate up to thirteen 120mm fans or up to nine 140mm fans. The Case also supports 360mm radiator mounting in the front, top, bottom, and side. The front I/O USB ports include four USB 3.2 Gen1 ports and one high-speed USB 3.2 Gen2 Type-C port.
Corsair 6500D AIRFLOW is a spacious case and supports 190mm tall CPU Coolers, 400mm long graphics cards, and 225mm long PSUs. The Case also supports reverse connector motherboards and vertical GPU mounting. When it comes to storage, it can accommodate two 3.5-inch and two 2.5-inch drives. Other features include superior cable management and dust filters. Aesthetically, it is a good-looking PC Case even though it lacks a front glass panel. This PC Case is available in black and white color options.
Note: The Case is also available with a front tempered glass panel, and its model number is Corsair 6500X Mid-Tower Dual Chamber PC Case.
| Corsair 6500D AIRFLOW Dual Chamber PC Case Specifications | |
| Form Factor | Mid-Tower |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX |
| Drive Bays | 3.5” x 2, 2.5” x 2 |
| Front I/O Ports | HD Audio, 4 x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-C |
| Expansion Slots | 8 horizontal (+4 vertical with Vertical Mount Accessory) |
| CPU Cooler Height | 190mm |
| Graphics Card Length | 400mm |
| PSU Compatibility | ATX (225mm) |
| Case Fans Support | Front:
Top: Side: Rear: Bottom: |
| Radiator Support | Up to 360mm |
| Other Features | Reverse Connector Motherboard support, Vertical GPU Mounting support, Cable Management, Front Mesh Panel, Top/Bottom/Right Side Mesh Panel, Dust Filters |
Buy Corsair 6500D AIRFLOW Mid-Tower Case

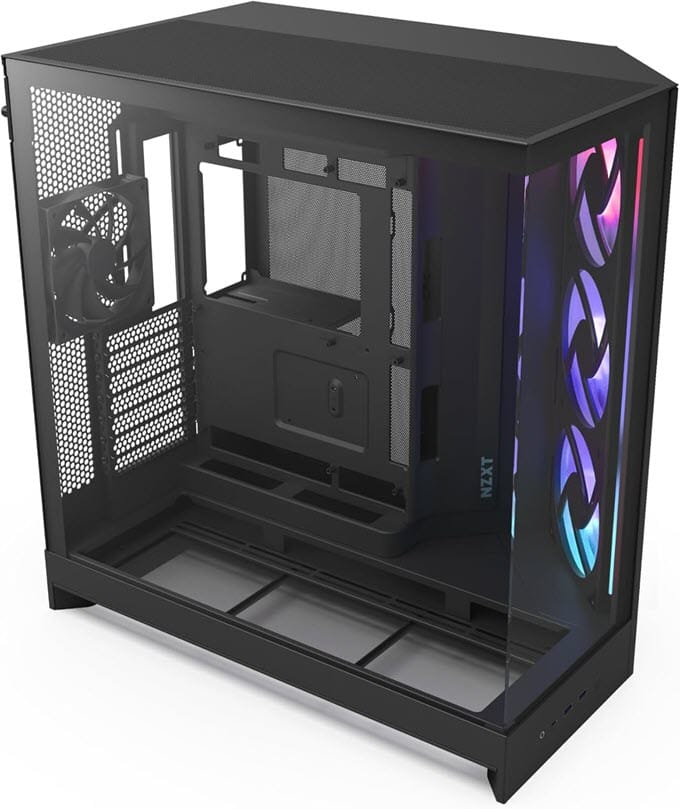

NZXT H9 Flow RGB Dual Chamber PC Case
[Great Looks and Build Quality, Very Good Airflow, Back-connect Motherboard ready, RGB Lighting, Very Spacious]
NZXT H9 Flow RGB is a larger mid-tower PC Case supporting E-ATX (Up to 277 mm) motherboards. It is a beautiful PC Case and offers tons of space and features for building a high-performance gaming PC or workstation. The PC Case has good airflow and cooling and can support up to 10 fans in total (up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear). The Case has an angled front right mesh corner where the F420 RGB Core single-frame fan unit comes preinstalled. Front I/O ports include ultra-fast USB 3.2 Gen2x2 Type-C port, USB 3.2 Type-A ports, and audio ports. The front and left side of the Case have tempered glass panels that offer a panoramic view of your internal components.
The Case can support up to 165mm tall CPU Coolers, 459mm long graphics cards, up to 420mm radiators, and 200mm long ATX power supplies. The NZXT H9 Flow RGB Case supports back-connect or reverse connector motherboards and has easy cable management. When it comes to storage drives, the Case can accommodate two 3.5-inch and up to six 2.5-inch drives. The build quality of the Case is excellent, and it looks modern and attractive. It is available in black and white colors.
| NZXT H9 Flow RGB Dual Chamber PC Case Specifications | |
| Form Factor | Mid-Tower
|
| Motherboard Support | E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX |
| Drive Bays | 3.5” x 2, 2.5” x (4+2) |
| Front I/O Ports | USB 3.2 Type-A x 2, USB 3.2 Gen2x2 Type-C x 1, Audio |
| Expansion Slots | 7 |
| CPU Cooler Height | 165mm |
| Graphics Card Length | 459mm |
| PSU Compatibility | ATX (200mm) |
| Case Fans Support | Front Right: 3 x 120mm / 3 x 140mm (1 x F420 RGB Core included)
Top: 3 x 120mm / 3 x 140mm Rear: 1x 120mm (1 x F120Q (CV) included) Bottom: 3 x 120mm / 3 x 140mm |
| Radiator Support | Up to 420mm |
| Other Features | Rear-Connecting Motherboard Support (BTF, Project Zero), Tempered Glass Panels (Front/Side), Mesh Front Right Panel, Top/Side Mesh Panels, RGB Lighting, Easy Cable Management, Panoramic View |
Buy NZXT H9 Flow RGB Dual Chamber PC Case

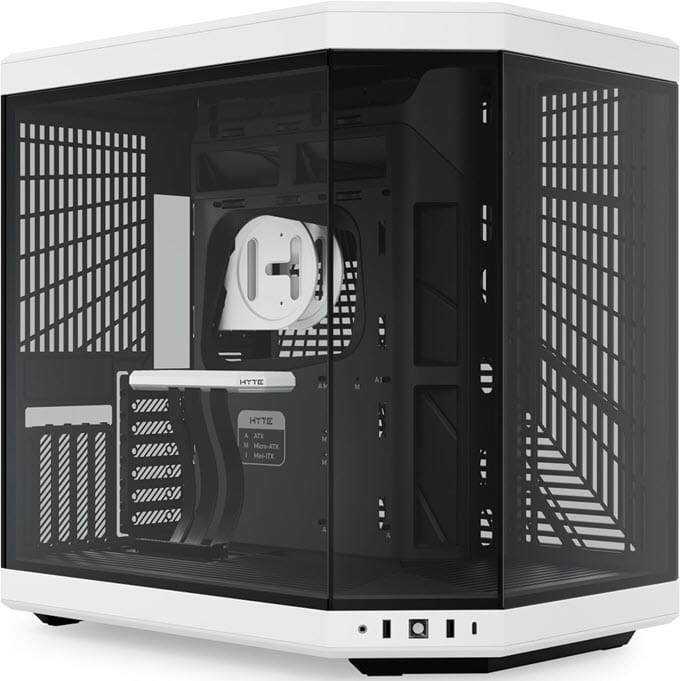

HYTE Y70 Dual Chamber Mid-Tower Case
[Modern and Beautiful Design, Vertical GPU Mounting, Wide Color Options, Great Build Quality, Spacious]
HYTE is the sister brand of iBUYPOWER, a renowned manufacturer of custom and pre-built gaming PCs and Laptops. HYTE may not be as popular as other brands, but it manufactures one of the best-looking, modern, and feature-rich PC Cases without compromising on build quality and performance. Here we have HYTE Y70, a spacious dual-chamber mid-tower Case with good build quality, impressive features, and an amazing look. The Case can fit up to E-ATX motherboards and supports vertical mounting of the graphics card. HYTE Y70 features a three-piece tempered glass panel, giving an amazing panoramic view of the components. The Case has good airflow and supports up to ten 120mm fans and seven 140mm fans. It has mesh panels at the top, right side, and bottom for unrestricted ventilation. The front I/O ports include USB-C 3.2 Gen 2, USB-A 3.2 Gen 1, and audio ports.
HYTE Y70 can support 180mm tall CPU Coolers, 422mm long graphics cards, up to a 360mm radiator, and an ATX PSU up to 235mm in length. The Case can accommodate up to two 3.5-inch drives and up to four 2.5-inch drives for storage. A PCIe 4.0 x16 Riser Cable comes included with the Case for vertical GPU mounting. Other features include a tactile blue power switch, seamless cable management, and an L-shaped rubber grommet. HYTE Y70 is available in a variety of colors: snow white, panda (black and white), pitch black, black cherry (black and red), matcha (green), strawberry milk (pink), taro milk (purple), and blueberry milk (blue).
| HYTE Y70 Dual Chamber Mid-Tower Case Specifications | |
| Form Factor | Mid-Tower
|
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX |
| Drive Bays | 3.5” x 2, 2.5” x 4 |
| Front I/O Ports | 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack |
| Expansion Slots | 7 half + 4 full height |
| CPU Cooler Height | 180mm |
| Graphics Card Length | 422mm |
| PSU Compatibility | ATX (235mm) |
| Case Fans Support | Top: 3 x 120mm / 2 x 140mm
Side: 3 x 120mm / 2 x 140mm Rear: 1 x 120/140mm Bottom: 3 x 120mm / 2 x 140mm @ 32 mm thick |
| Radiator Support | Up to 360mm |
| Other Features | 4-slot vertical graphics card support, Riser Cable Included (PCIE 4.0 x16), Dust Filters (Top/Side/Bottom), Extensive Cable Management, Tempered Glass Panels (Tool-less), |
Buy HYTE Y70 Dual Chamber Mid-Tower Case
Compact Mid-Tower Dual Chamber PC Cases
Below are the best compact mid-tower dual-chamber computer cases that support up to ATX or Micro-ATX motherboards.

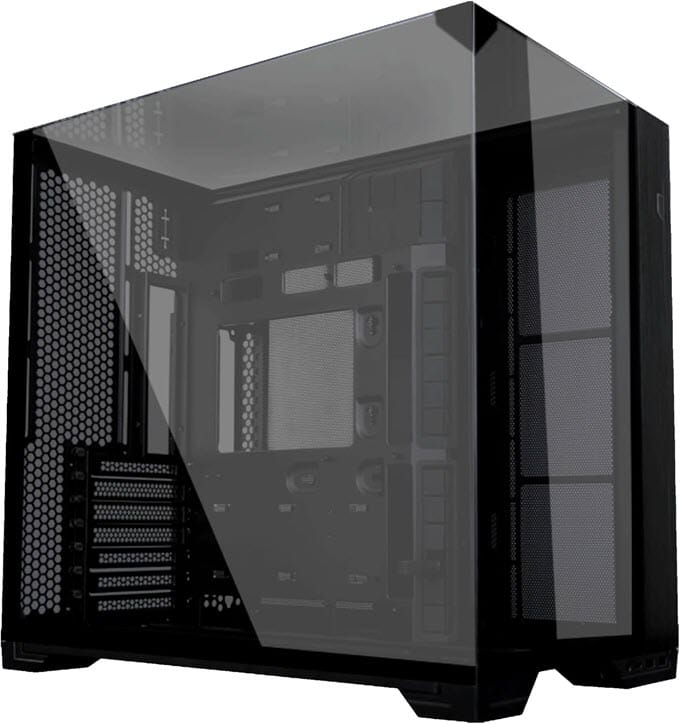

Lian Li O11 VISION COMPACT Mid-Tower Case
[Swappable Top Panels (Mesh or Glass), Back-connect Motherboard support, AIO Tube concealed design]
Lian Li O11 VISION COMPACT Mid-Tower Case is a compact version of the Lian Li O11 Dynamic Case. This Compact Dual-Chamber Case supports E-ATX (Under 280mm) motherboards and is also compatible with reverse connector or back-connect ATX motherboards. The front and left side panels of the Case are made of tempered glass, and the top panel can be fitted with either mesh or tempered glass, depending on your requirements. The mesh panel (MESH Mode) allows for top AIO and fans installation, whereas the tempered glass panel (VISION Mode) allows for 270-degree side visibility, showcasing your components beautifully. In mesh mode, the Case supports up to 11x 120mm fans, or 2x 140mm and 8x 120mm fans, whereas in vision mode, it supports up to 8x 120mm fans. Front I/O ports include USB 3.0 x 2, USB 3.1 TYPE-C, and audio.
The Case can fit up to 167mm tall CPU Coolers, 408mm long graphics cards, 360mm radiators, and 220 mm long ATX PSUs. It also features a Hidden AIO tube design for a clean and clutter-free look. Regarding storage capacity, the Case can fit two 3.5-inch and two 2.5-inch or four 2.5-inch drives. Other features include easy cable management, a built-in removable GPU anti-sag bracket, and magnetic dust filters. The Case is available in two colors: black and white.
| Lian Li O11 Vision Compact Mid-Tower Case | |
| Form Factor | Mid-Tower
|
| Motherboard Support | Back-Connect ATX, E-ATX (Under 280mm), ATX, Micro-ATX, Mini-ITX |
| Drive Bays | Behind MB Tray: 2 x 2.5″ SSD
Hard drive cage: 2 x 3.5″ HDD or 2.5″ SSD |
| Front I/O Ports | Power Button, USB 3.0 x 2, USB 3.1 TYPE-C x 1, Audio |
| Expansion Slots | 7 |
| CPU Cooler Height | 167mm |
| Graphics Card Length | 408mm |
| PSU Compatibility | ATX (Under 220mm) |
| Case Fans Support | Top: 120mm x 3 or 140mm x 2 Side: 120mm x 3 Bottom: 120mm x 3 Rear: 120mm x 2 |
| Radiator Support | 360mm |
| Other Features | Two top panel options (mesh or tempered glass), Easy Cable Management, back-connect motherboard support, Hidden AIO tube design, Mounting space for an IPS monitor, Built-in removable GPU anti-sag bracket, Magnetic dust filter (bottom) |
Buy Lian Li O11 VISION COMPACT PC Case

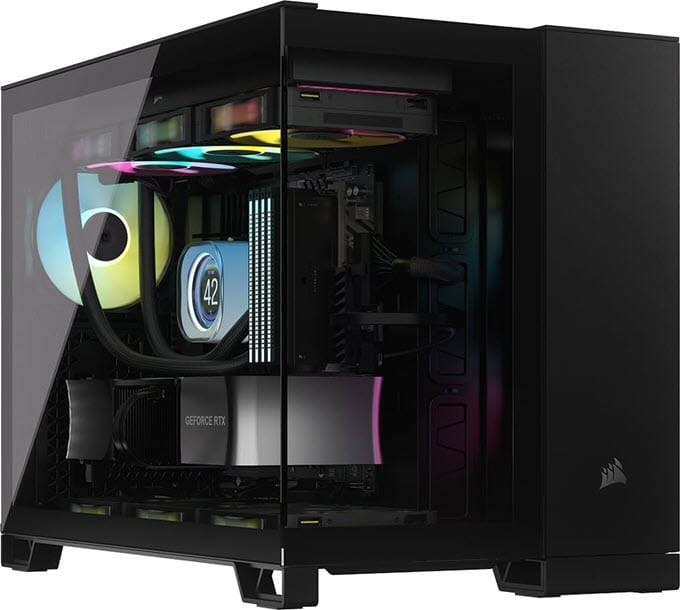

Corsair 2500X Mid-Tower Dual Chamber PC Case
[Reverse Connector Motherboard support, Vertical GPU mount support, Stunning design, and excellent build quality]
A very compact dual-chamber PC Case that supports up to Micro-ATX motherboards and is compatible with reverse connector motherboards. The Corsair 2500X Mid-Tower Dual Chamber PC Case is basically a smaller version of the Corsair 6500X Mid-Tower Dual Chamber PC Case. The Case supports up to nine 120mm or six 140mm fans, including radiator mounting options for up to 240mm in the side panel and up to 360mm in the roof and bottom panel. The front I/O ports include two USB 3.2 Gen1 ports, one USB-3.2 Gen2 Type-C port, and audio ports. The Case comes with front and left side tempered glass panels, while the top, bottom, and right side panels are mesh panels.
The Case supports 180mm tall CPU Coolers, 400mm long graphics cards, 360mm radiators, and ATX PSUs up to 225mm in length. It also supports vertical GPU mounting using a vertical mount kit. The storage options include support for two 3.5-inch and two 2.5-inch drives. It is a good-looking chassis and is excellent for building a compact gaming or work PC. The Case is available in two colors: black and white.
| Corsair 2500X Dual Chamber PC Case Specifications | |
| Form Factor | Mid-Tower
|
| Motherboard Support | Mini-ITX, Micro-ATX |
| Drive Bays | 3.5” x 2, 2.5” x 2 |
| Front I/O Ports | 2 x USB 3.2 Gen1, 1 x USB-3.2 Gen2 Type-C, HD Audio |
| Expansion Slots | 4 horizontal (4 vertical with accessory) |
| CPU Cooler Height | 180mm |
| Graphics Card Length | 400mm |
| PSU Compatibility | ATX up to 225mm |
| Case Fans Support | Top: 3 x 120mm, 3 x 140mm
Side: 2 x 120mm Rear: 1x 120mm Bottom: 3 x 120mm, 3 x 140mm |
| Radiator Support | Up to 360mm |
| Other Features | Reverse Connector Motherboard support, Vertical GPU Mounting support, Cable Routing and Management, Top/Bottom/Right Side Mesh Panel, Dust Filters |
Buy Corsair 2500X Compact Mid-Tower PC Case

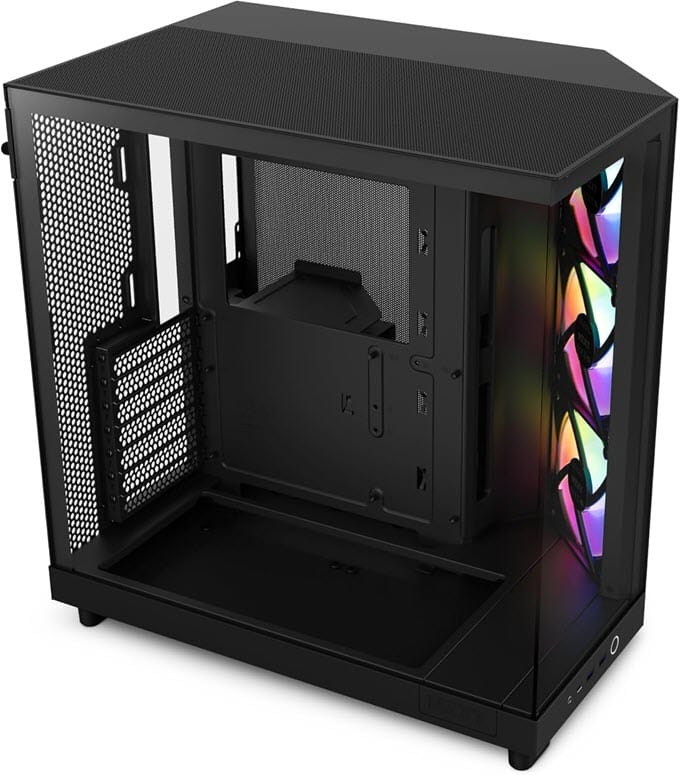

NZXT H6 Flow RGB Compact Mid-Tower Case
[Back-connect Motherboard support, RGB Lighting, Good Airflow, Modern and Stylish Design]
THE NZXT H6 Flow RGB Dual-Chamber Mid-Tower Case is a compact version of the NZXT H9 Flow RGB Dual-Chamber Mid-Tower Case. The Case can fit up to ATX motherboards and supports back-connect motherboards with hidden connectors. The Case has good airflow and supports up to nine fans (120mm and 140mm) in total and comes fitted with three F120 RGB Core 120mm fans. The Case features tempered glass at the front and right panel, with mesh panels at the top, right side, right-front angled corner, and bottom. The front I/O ports include one USB 3.2 Gen 2×2 Type-C (20 Gbps), two USB 3.2 Gen 1 Type-A, and audio ports.
The Case supports 163mm tall CPU Coolers, 365mm long graphics cards, 360mm radiators, and 200mm long ATX Power Supply Units. When it comes to storage drives, the Case can accommodate one 3.5-inch and two 2.5-inch drives. The build quality of the Case is very good, and it looks modern and attractive. Other features include easy cable management and tool-free access to the top and side panels. It is available in black and white colors.
| NZXT H6 Flow RGB Mid-Tower Case Specifications | |
| Form Factor | Mid-Tower
|
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Drive Bays | 3.5” x 1, 2.5” x 2 |
| Front I/O Ports | USB 3.2 Gen 1 Type-A x 2, USB 3.2 Gen 2×2 Type-C (20 Gbps) x 1, Audio |
| Expansion Slots | 7 |
| CPU Cooler Height | 163mm |
| Graphics Card Length | 365mm |
| PSU Compatibility | ATX (up to 200mm) |
| Case Fans Support | Front-Right: 3 x 120 mm (3 x F120 RGB Core case version included)
Top: 3 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm Bottom: 2 x 140 mm |
| Radiator Support | Up to 360mm |
| Other Features | Rear-Connecting Motherboard Support (BTF, Project Zero), Tempered Glass Panels (Front/Side), Mesh Front Right Panel, Top/Side Mesh Panels, RGB Lighting, Easy Cable Management, Panoramic View, Tool-free access to the top and side panels |
Buy NZXT H6 Flow RGB Compact Mid-Tower Case
Other Compact Mid-Tower Dual Chamber PC Cases
- Thermaltake View 380 TG ARGB Mid Tower Chassis

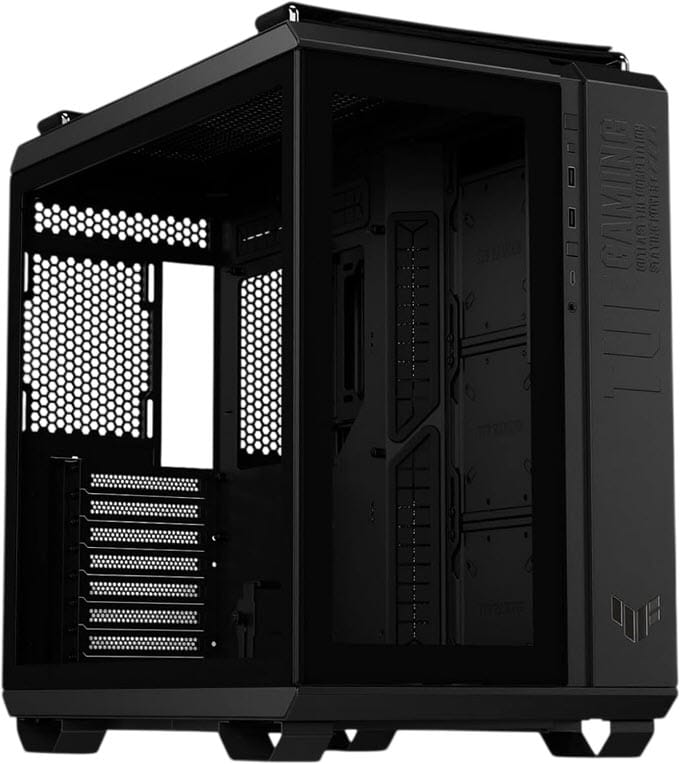

- Asus TUF Gaming GT502 Mid-Tower Dual-Chamber Case
- Cooler Master Elite 481 Wood Mini-Tower PC Case
- Deepcool CG530 Mid-Tower ATX Dual-Chamber Case
- MONTECH KING 95 PRO Dual Chamber Case
Compact Mini-Tower Dual-Chamber PC Case
Super Compact Mini-Tower Dual-Chamber PC Case for mini-ITX motherboards only.
Full-tower Dual Chamber PC Cases
- Lian Li O11 DYNAMIC EVO XL Full-tower Chassis
- Antec C8 Wood Full Tower Dual-Chamber Case
- Antec C8 Curve Wood Full Tower Dual-Chamber Case
Final Words
Well, there is no doubt that Dual-Chamber PC Cases are great for building a cluster-free build with a clean look. These PC cases offer a lot of space, good ventilation, airflow, and numerous fan mounting options. They are best for building a powerful gaming PC or workstation and provide a fantastic panoramic view of your internal components. Most dual-chamber PC Cases are also compatible with reverse connector motherboards, which is an added advantage and makes your build futureproof. If you have any doubts about dual-chamber PC Cases, let me know your queries in the comment section below.
