Not so long ago, a 750W or even a 650W PSU was enough for building a high-end PC equipped with a top-of-the-line or flagship graphics card. Nowadays, this is no longer the case, as graphics cards have become much more powerful and consume considerably more power, especially high-end and flagship cards. For example, NVIDIA recommends a 1000W power supply for the GeForce RTX 5090, the most powerful graphics card in the GeForce RTX 50 series. The RTX 5080 and RTX 5070 Ti have recommended PSU capacities of 850W and 750W, respectively. This makes a good 1000W power supply a suitable choice for a high-end gaming PC, especially if you plan to use a powerful graphics card with a high-end CPU.
1000 Watt power supplies are not the highest wattage power supplies available. 1200W, 1500W, 2000W, 2200W, and even 2500W and 3000W power supplies also exist, though the very high-wattage models are mostly targeted at workstations and specialized systems. For a high-end gaming PC, a 1000W PSU provides a good balance between power capacity, efficiency, price, and future upgrade headroom. A common misconception is that buying a higher-wattage power supply will automatically increase your electricity bill, but it is not entirely true. A 1000W PSU does not constantly draw 1000W from the wall; if your PC consumes around 400W while gaming, the PSU supplies about the power the system needs.
A higher-wattage PSU can also have an efficiency advantage at certain loads. For example, if your PC consumes around 400W during gaming, a good 1000W PSU can operate at a relatively comfortable load level and may be more efficient than a 600W PSU running close to its maximum capacity. On the other hand, efficiency can be lower at very light loads, such as 150W to 200W, compared to a lower-wattage PSU. Also, there is usually not a huge price difference between an 850W and 1000W PSU from the same brand and product series. If you are already spending a lot on a high-end PC, a 1000W model can provide extra headroom for future upgrades.
Most modern 1000W PSUs are ATX 3.1 compliant or designed around the latest ATX 3.1 standard and support PCIe 5.1 graphics cards. A fully modular design is also common, which makes cable management much easier. Many of these PSUs are 80 PLUS Gold certified or have an even higher efficiency certification. Cooling is another important factor in a high-wattage PSU. Most 1000W models use a 135mm or 140mm fan, although some manufacturers use a 120mm fan. Larger fans can move a lot of air at relatively low speeds, helping reduce fan noise. Many modern 1000W PSUs also include Zero RPM or semi-passive operation, allowing the fan to stop completely when the load and temperature are low.
Best 1000 Watt Power Supplies for High-end PC
Below are some of the best 1000W PSUs for high-end gaming PCs and workstations. All models listed here support ATX 3.1 and modern PCIe GPU power requirements, while offering good build quality and performance.

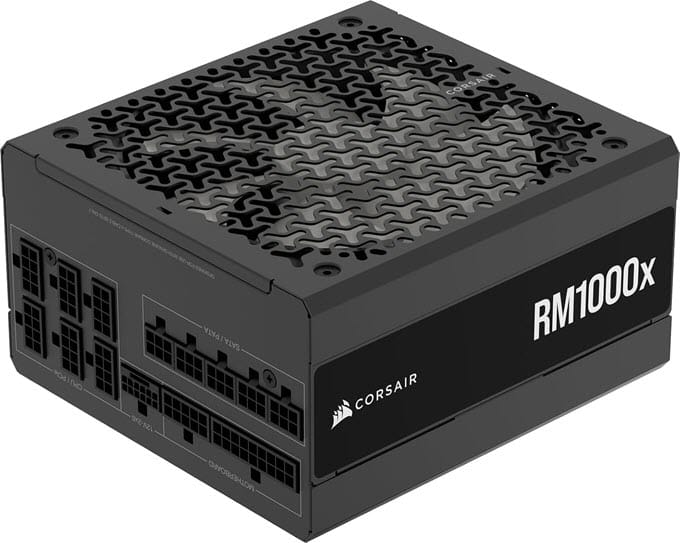

Corsair RMx Series RM1000x Power Supply
[ATX 3.1 Certified, Cybenetics Gold, Native 12V-2×6 Cable, 140mm Zero RPM Fan with Manual Override Knob, High-Performance and Build]
Corsair is one of the best-known PSU brands, and the RMx series is one of its most popular power supply series. The RM1000x is a high-performance 1000W fully modular power supply designed for high-end gaming PCs and workstations. It is ATX 3.1 certified and includes a native 12V-2×6 GPU cable for modern graphics cards. The PSU features embossed cables and low-profile cable combs, making cable routing easier and giving the finished PC a cleaner look.
The RM1000x is 80 PLUS Gold certified and Cybenetics Gold certified. Corsair uses a 140mm fluid dynamic bearing fan with a magnetic dome structure. The fan runs in Zero RPM mode at low to medium loads, so it can remain completely stopped when active cooling isn’t needed. A manual fan override knob at the rear of the PSU lets users override Zero RPM and the low-noise profile when they need more airflow.
For graphics card connectivity, the RM1000x includes one native 12V-2×6 connector and four PCIe 8-pin (6+2) connectors. This combination lets you use the PSU with the latest graphics cards that use 12V-2×6, as well as high-end cards that still use traditional 6+2-pin PCIe power connectors. The PSU has 83.3A on the +12V rail and can deliver the full 1000W output. Build quality is one of the RM1000x’s main strengths. Corsair uses 100% industrial-grade 105°C-rated Japanese electrolytic capacitors and rates the PSU for continuous operation at up to 50°C. The fully modular design means you connect only the cables the system needs.
The RM1000x offers excellent ripple suppression, tight load regulation on the minor rails, good efficiency, and very good performance in advanced transient response tests. It also offers a long hold-up time, fully modular cabling, and plenty of PCIe and EPS connectors. The combination of a 140mm low-noise fan, Zero RPM operation, native 12V-2×6 support, and four traditional PCIe connectors makes it a flexible 1000W PSU for a high-end PC. The PSU is available in black and white colors and includes a 10-year warranty.
| Corsair RMx Series RM1000x Power Supply Specifications | |
| Wattage | 1000W |
| 12V Rail Current | 83.3A |
| Fan Size | 140mm FDB |
| Certification | 80 PLUS Gold, Cybenetics Gold |
| Modular | Fully Modular |
| 8-pin PCI-E Connectors | 4 |
| 12V-2×6 Connectors | 1 |
| Features | ATX 3.1, PCIe 5.1, Zero RPM Mode, manual fan override, 105°C Japanese capacitors, embossed cables with low-profile combs, 50°C continuous operation, 10-year warranty, Black/White Colors Available |
Buy Corsair RMx Series RM1000x PSU

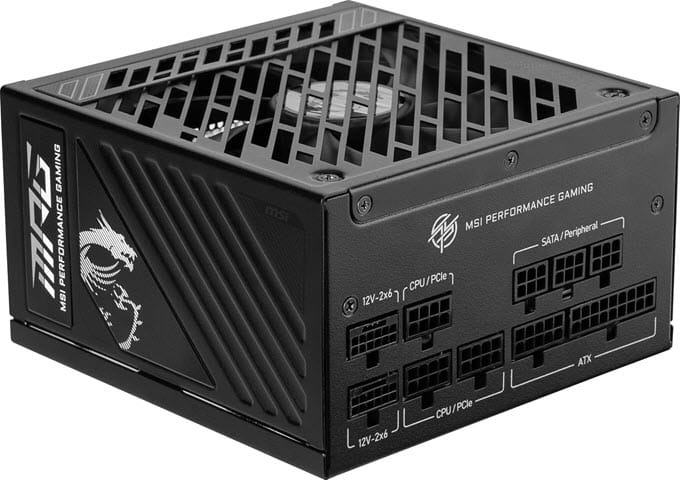

MSI MPG A1000GS PCIE5 Power Supply
[Dual Native 12V-2×6 Connectors, Dual Color Yellow Cable, Zero Fan Mode Switch, 135mm FDB Fan, Server-Grade 105°C Capacitors]
The MSI MPG A1000GS PCIE5 offers good value without compromising on build quality and modern GPU compatibility. This 1000W fully modular power supply is designed for high-end gaming PCs and supports ATX 3.1 and PCIe 5.1. One of its main advantages is that it provides two native 12V-2×6 connectors, which is more than most 1000W PSUs in this price range. The PSU is 80 PLUS Gold certified, with efficiency up to 90%, and uses a 135mm fluid dynamic bearing fan. MSI also offers Zero Fan Mode, which you can turn on or off with a physical switch on the rear of the PSU. This lets users run the PSU fanless at low loads or keep the fan running continuously for extra airflow.
The MPG A1000GS PCIE5 has two 12V-2×6 connectors rated for 600W and one traditional PCIe 6+2 connector. In other words, it has two 12V-2×6 connectors and only one 6+2 connector. This is an important point to consider when choosing this PSU. The power supply is particularly well suited to NVIDIA graphics cards that use 12V-2×6, while users planning to install a high-end AMD graphics card that requires multiple traditional PCIe connectors should check the GPU’s power requirements before purchasing.
MSI uses 100% server-grade 105°C capacitors in this PSU. The embossed jacket cables are more flexible and easier to route compared to traditional stiff cables, and MSI also includes cable organizers or combs. The PSU has a compact 150mm length, making it compatible with most standard ATX PC cases. The PSU supports a very high power excursion of up to 2350W for 100 microseconds, which is up to 235% of its rated power. It also includes OCP, OTP, OPP, SCP, OVP, UVP, SIP, and NLO protection. The major limitation of the MPG A1000GS PCIE5 is its single traditional PCIe 6+2 connector. However, for a high-end NVIDIA gaming PC using one or two 12V-2×6 connectors, the dual native 12V-2×6 design can be useful.
| MSI MPG A1000GS PCIE5 Power Supply Specifications | |
| Wattage | 1000W |
| 12V Rail Current | 83.3A |
| Fan Size | 135mm FDB |
| Certification | 80 PLUS Gold |
| Modular | Fully Modular |
| 8-pin PCI-E Connectors | 1 |
| 12V-2×6 Connectors | 2 |
| Features | ATX 3.1, PCIe 5.1, dual native 12V-2×6, Zero Fan Mode, 105°C server-grade capacitors, embossed cables, cable combs, OCP/OTP/OPP/SCP/OVP/UVP/SIP/NLO, Black Color |
Buy MSI MPG A1000GS PCIE5 Power Supply

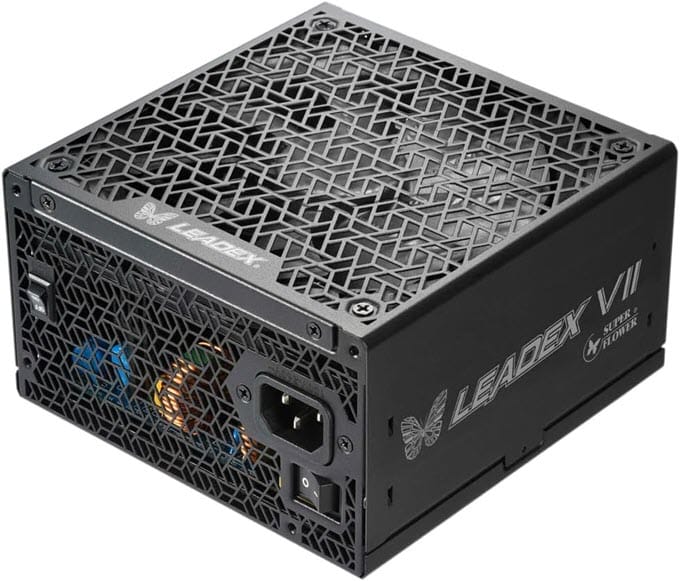

Super Flower Leadex VII XG 1000W Power Supply
[80 Plus Gold, Cybenetics Platinum, Ribbon Cables, Compact 150mm Length, 140mm FDB Fan]
Most users may never have heard of Super Flower, but the company has been manufacturing power supplies for many years and has also manufactured PSUs for other major brands, including EVGA. Super Flower is an OEM (Original Equipment Manufacturer) and makes high-quality power supplies and competes with established PSU manufacturers such as Seasonic and FSP. The Leadex VII XG 1000W is an ATX 3.1-compatible, fully modular power supply with 80 PLUS Gold and Cybenetics Platinum certification. It is designed for modern high-end gaming systems and comes with a native 12V-2×6 cable for newer graphics cards. Its relatively compact 150mm length makes it easier to install in a wide range of PC cases.
The PSU uses a 140mm fluid dynamic bearing fan. It also includes ECO mode, which enables semi-passive operation and lets the fan stop at low loads. This helps reduce noise during light desktop work or other low-power tasks. The large 140mm fan can provide good airflow without requiring very high fan speeds. The Leadex VII XG 1000W provides 83.3A on the +12V rail. It has a fully modular design and uses ribbon-style cables to maximize flexibility inside the PC case. The PSU also supports ATX 3.1 and PCIe Gen 5 requirements and is designed to handle transient power spikes. Super Flower uses a full-bridge and resonant LLC topology with DC-to-DC conversion.
For GPU connectivity, the Leadex VII XG 1000W includes one 12V-2×6 connector and four PCIe 6+2 connectors. This makes it suitable for both modern GPUs using the latest 16-pin connector and graphics cards that use traditional PCIe power connectors. The PSU also includes a full protection suite, including OPP, OVP, UVP, SCP, OCP, OTP, SIP, and NLO protection. The build quality is superb, and the PSU is available in black and white colors.
| Super Flower Leadex VII XG 1000W Power Supply Specifications | |
| Wattage | 1000W |
| 12V Rail Current | 83.3A |
| Fan Size | 140mm FDB |
| Certification | 80 PLUS Gold, Cybenetics Platinum |
| Modular | Fully Modular |
| 8-pin PCI-E Connectors | 4 |
| 12V-2×6 Connectors | 1 |
| Features | ATX 3.1, PCIe 5.1, ECO Mode, 105°C capacitors, full-bridge LLC, DC-to-DC conversion, full protection suite, ribbon cables, 150mm length, Black/White Colors |
Buy Super Flower Leadex VII XG 1000W PSU

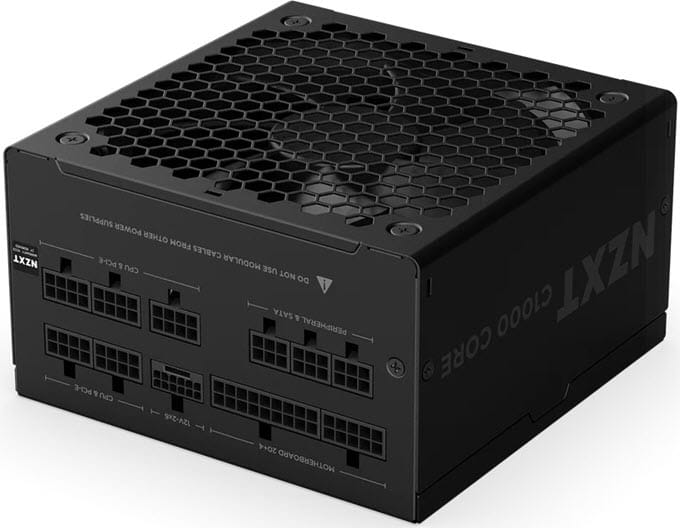

NZXT C1000 Gold Core 1000W PSU
[Best Value, Cybenetics Platinum A+ Noise Rating, Dual Color 12V-2×6 Connector, 150mm Length]
The NZXT C1000 Gold Core is one of the more affordable 1000W options from a major PC hardware brand. It is a fully modular ATX 3.1 power supply with 80 PLUS Gold certification and Cybenetics Platinum efficiency certification. It also carries a Cybenetics A+ noise rating, which means noise stays in the 15 to 20 dBA range in lab testing. The C1000 Gold Core uses a 135mm PWM fluid dynamic bearing fan and supports Zero RPM Mode. The fan is rated for up to 2,300 RPM and provides up to 103.36 CFM airflow. The semi-passive cooling system lets the fan stay off at low loads, helping reduce noise during normal desktop use.
For graphics card connectivity, the PSU has one 12V-2×6 connector rated for 600W and three PCIe 6+2 connectors. This makes it compatible with both the latest PCIe 5.1 graphics cards and GPUs that continue to use traditional PCIe connectors. The 12V-2×6 connector is particularly useful for high-end NVIDIA graphics cards. The C1000 Gold Core uses 105°C-rated performance capacitors and individually embossed cables with cable combs. These cables are easier to bend and route inside the case and can help produce a cleaner-looking build. The power supply is rated for continuous full-load operation at temperatures between 0°C and 50°C.
The C1000 Gold Core provides 83.3A on the +12V rail and can deliver the full 1000W through the rail. It also includes over-voltage, under-voltage, short-circuit, and over-temperature protection. The fully modular design makes installation easier because you can leave unnecessary cables disconnected. At 150mm in length, it is on the compact side and compatible with most PC cases. It is available in black only and has a 7-year warranty.
| NZXT C1000 Gold Core 1000W PSU Specifications | |
| Wattage | 1000W |
| 12V Rail Current | 83.3A |
| Fan Size | 135mm PWM FDB |
| Certification | 80 PLUS Gold, Cybenetics Platinum |
| Modular | Fully Modular |
| 8-pin PCI-E Connectors | 3 |
| 12V-2×6 Connectors | 1 |
| Features | ATX 3.1, PCIe 5.1, Zero RPM Mode, 105°C capacitors, embossed cables with combs, 150mm length, OVP/UVP/SCP/OTP, Black Color only |

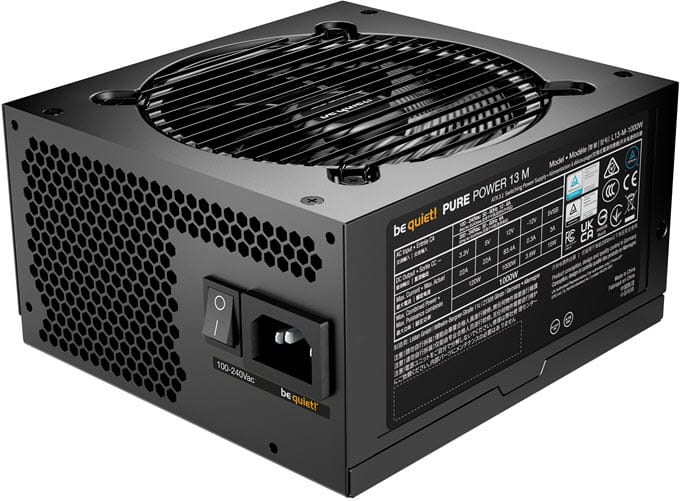

be quiet! Pure Power 13 M 1000W PSU
[Very Silent, Great Price-to-Performance Ratio, One 12V-2×6 Plus Four 8-pin Connectors, LLC Technology]
be quiet! is a German computer hardware brand known for quiet cooling and low-noise, high-quality PC components. The Pure Power 13 M 1000W is designed for high-end gaming PCs and offers a good combination of price, performance, cooling, and modern graphics card compatibility. The Pure Power 13 M 1000W is 80 PLUS Gold certified with efficiency of up to 94.4%. It is fully compliant with ATX 3.1 and supports PCIe 5.1 graphics cards. The PSU uses a single powerful 12V rail capable of delivering 83.4A and LLC technology for stability and voltage regulation.
For GPU connectivity, it has one native PCIe 5.1 12V-2×6 connector rated for up to 600W and four traditional PCIe 6+2 connectors. This flexible combination supports modern graphics cards using 12V-2×6, as well as current and previous-generation GPUs using traditional 8-pin (6+2) PCIe connectors. A 120mm be quiet! fan with semi-passive operation cools the PSU. The fan can turn off completely under low loads and starts automatically when it needs extra cooling. The airflow-optimized fan blades and temperature-controlled fan curve keep operation quiet across different load levels. It is designed to handle large transient loads from modern graphics cards and processors. The fully modular cable design makes installation easier and reduces cable clutter. be quiet! provides a 10-year manufacturer warranty with the Pure Power 13 M series.
| be quiet! Pure Power 13 M 1000W PSU Specifications | |
| Wattage | 1000W |
| 12V Rail Current | 83.4A |
| Fan Size | 120mm |
| Certification | 80 PLUS Gold |
| Modular | Fully Modular |
| 8-pin PCI-E Connectors | 4 |
| 12V-2×6 Connectors | 1 |
| Features | ATX 3.1, PCIe 5.1, semi-passive Zero RPM cooling, LLC technology, single 12V rail, 600W 12V-2×6, 105°C components, 10-year warranty, Black Color only |
Buy be quiet! Pure Power 13 M 1000W PSU
Other Good 1000W PSU Options
Here are some other good 1000W PSUs that you can also check out:
Cooler Master Elite Gold 1000 Power Supply — A 1000W power supply designed for high-performance gaming PCs, offering modern GPU compatibility, high efficiency, and a fully modular design.
ASRock Steel Legend SL-1000G Power Supply — A 1000W ATX 3.1 PSU for modern gaming PCs with PCIe 5.1 support, fully modular cabling, and a native 12V-2×6 connector.
GIGABYTE UD1000GM PG5 V2 Power Supply — A 1000W fully modular PSU supporting ATX 3.1 and PCIe 5.1, with a native 12V-2×6 GPU power connector for modern high-end graphics cards.
1000 Watt PSU FAQs
Here are some common questions about 1000 Watt power supplies.
Is 1000W PSU enough for RTX 5090?
Yes, 1000W is the recommended PSU capacity for the GeForce RTX 5090 according to NVIDIA’s specifications. A good-quality 1000W PSU is suitable for an RTX 5090 system when the rest of the hardware is within the expected power range. However, you should also consider PSU quality, CPU power requirements, connector configuration, and overclocking.
Is a 1000W PSU Overkill?
A 1000W PSU is not necessarily overkill for a high-end PC. Modern flagship graphics cards can have high power requirements, and a 1000W PSU provides useful headroom for the GPU and CPU. For a mid-range PC with a relatively low-power graphics card, however, a 1000W PSU may provide considerably more capacity than the system requires.
Is a higher-wattage PSU better?
A higher-wattage PSU isn’t automatically better. A 1000W PSU can provide more power than an 850W PSU, but overall quality also depends on efficiency, voltage regulation, ripple suppression, component quality, cooling, protections, and transient-load performance. For a high-end PC, additional wattage can provide useful headroom.
Will a 1000W PSU consume more electricity?
No. A 1000W PSU does not constantly consume 1000W of electricity. The 1000W figure represents the maximum amount of power the PSU can continuously deliver to the PC. If your system requires 400W, the PSU supplies approximately 400W to the components, plus the electricity lost during power conversion.
See also:
- Best Budget ATX 3.0 Power Supplies with 12VHPWR Connector
- List of PSUs with Temperature Sensor and Power Monitoring
- Best Graphics Cards without 12VHPWR or 12V-2×6 Connector
Final Words
A 1000W PSU is a good choice for a high-end PC, especially if you are planning to use a flagship or high-end graphics card. Modern GPUs have significantly higher power requirements, and the additional capacity of a 1000W PSU provides useful headroom for the graphics card, CPU, and future upgrades. Even if your current PC doesn’t require 1000W, a 1000W PSU can provide extra capacity for future upgrades. However, choose a quality PSU rather than one with a high wattage rating. If you need help choosing a 1000W power supply, ask your questions in the comment section below.
