Best Value X870 Motherboards [Budget, Mainstream, Mid-range]

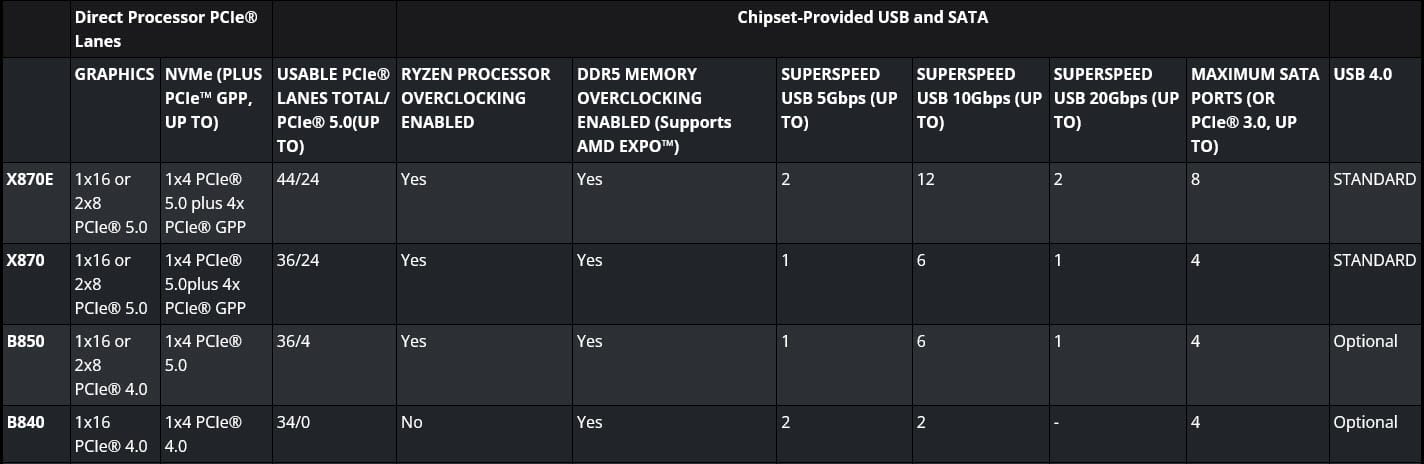

The AMD X870 Chipset is a high-performance chipset for AMD AM5 Socket Processors, including Ryzen 7000/8000/9000 series processors. The X870 chipset is not the flagship AM5 chipset; that title belongs to the X870E. The E in the X870E chipset signifies Enhanced, as it offers additional ports and lanes over the regular X870 chipset. Technically, there is no difference between the X870 and X870E chipsets in terms of features. The only difference is that the X870E chipset offers more USB ports, SATA ports, and PCIe lanes than the X870 chipset. In the table, you can see the key differences among the AMD 800-series chipsets, including X870E, X870, B850, and B840.

Both X870 and X870E chipsets support CPU and Memory Overclocking, PCIe 5.0 for both graphics cards and M.2 NVMe drives, and USB 4.0 with a maximum transfer rate of 40 Gbps. X870 chipset motherboards offer great value and are more than enough for building a high-end gaming or workstation. Motherboards with the X870E chipset cost slightly more than those with the X870 chipset, and the price difference depends on the motherboard’s features and model. There are many X870 motherboard models available on the market from different brands, and choosing the one that offers best value can be challenging for some users. So, here I will list the best-value X870 motherboards (budget, mainstream, and mid-range) for your high-end Ryzen gaming PC or workstation.

Best Budget X870 Motherboards

If you are tight on budget but want the performance and features of the X870 chipset, you can check out the X870 motherboards below that fall into the budget category. These motherboards support PCIe 5.0 for graphics cards and NVMe drives, and come with USB4 and Wi-Fi 7. They also have a good VRM solution and have VRM heatsinks for cooling.

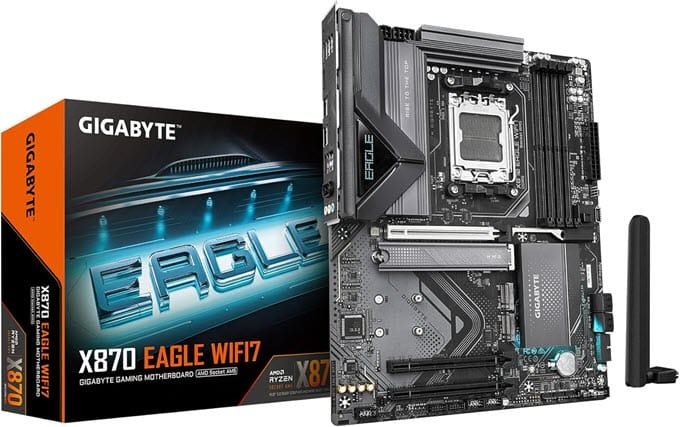

GIGABYTE X870 EAGLE WIFI7 Motherboard

[Budget Pricing, Dual USB4 Ports, Wi-Fi 7]

GIGABYTE X870 EAGLE WIFI7 is one of the best affordable X870 ATX motherboards for users who are a little tight on budget. The motherboard offers good performance and has decent connectivity options. It comes with three PCIe x16 slots (one PCIe 5.0 and two PCIe 3.0), three M.2 slots (one PCIe 5.0 and two PCIe 4.0), two ultra-high-speed USB4 Type-C ports (40Gbps) with DP-Alt, Wi-Fi 7, and Q-Flash BIOS Flashback button. An awkward thing about this motherboard is the placement of the primary M.2 Slot (PCIe 5.0) below the primary PCIe 5.0 x16 slot, which may cause the graphics card to blast hot air onto the NVMe SSD in the primary slot. This may result in slightly higher NVMe SSD temperatures when it is installed in the primary slot.

The motherboard features a Digital Twin 14+2+2-phase VRM solution (60A) and has decent-sized VRM heatsinks for cooling. The motherboard features a quick-release, screwless design for the primary M.2 slot and PCIe x16 slots. Display connectivity options include one HDMI 2.1 port. Other key features, specifications, and connectivity options are available in the table below.

GIGABYTE X870 EAGLE WIFI7 Specifications
Socket Type	AM5
Form Factor	ATX
Chipset	X870
Processor support	AMD Ryzen 9000 / 8000 / 7000 Series Processors
RAM support	DDR5 8200 (OC), up to 256GB, Dual Channel
Slots	4 x DIMM, 1 x PCIe 5.0 x16, 2 x PCIe 3.0 x16, 3 x M.2 (1 x PCIe 5.0, 2 x PCIe 4.0)
Ports / Connectors	4 x SATA 6Gb/s, 2 x USB4 Type-C, 1 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1, 4 x USB 2.0
Features	7.1 Channel Realtek HD Audio, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, 256 Mbit flash, WIFI EZ-Plug, EZ-Latch Plus (PCIe and M.2 slots with Quick Release & Screwless Design), EZ-Latch Click (M.2 heatsinks with screwless design), VRM Heatsinks, M.2 Heatsink, 2.5GbE LAN, Wi-Fi 7, 14+2+2 Twin Digital VRM Design, ARGB and RGB Headers, RGB Fusion support, Q-Flash Button (BIOS Flashback), BLUETOOTH 5.4, Integrated I/O Shield, AMD EXPO support
Display Output	1 x HDMI 2.1

Buy GIGABYTE X870 EAGLE WIFI7 Motherboard

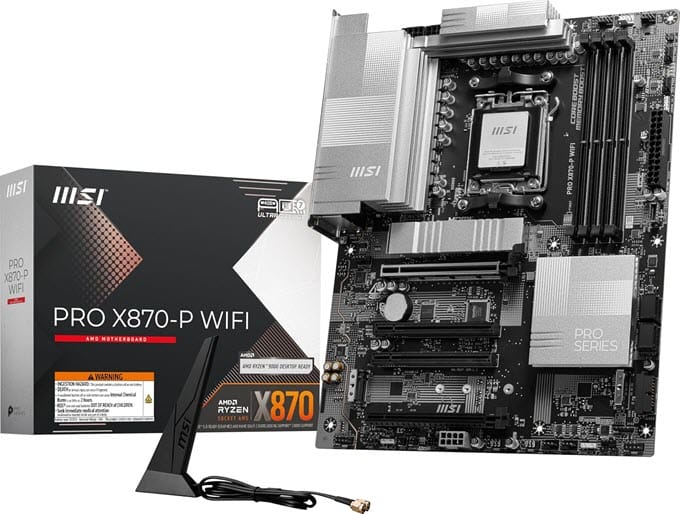

MSI PRO X870-P WIFI Motherboard

[8-layer PCB, Wi-Fi 7, 5G LAN, BIOS Flashback and Clear CMOS Buttons, Affordable Pricing]

MSI PRO X870-P WIFI Motherboard is one of the best budget X870 motherboards that comes with many features and offers good performance. It is an ATX motherboard with three PCIe x16 slots (one PCIe 5.0) and three M.2 slots (one PCIe 5.0). The motherboard features the latest features and functionality, including a USB4 Type-C port (40 Gbps), Wi-Fi 7, 5G LAN, a BIOS Flashback Button, and a Clear CMOS Button.

The motherboard is well-built and uses an 8-layer PCB made of 2oz thickened copper and server-grade materials. The motherboard uses a 14+2+1 Duet Rail Power System (60A) VRM Solution and has VRM heatsinks for cooling. Display connectivity options include one HDMI 2.1port. Below are the major specifications and features of the MSI PRO X870-P WIFI Motherboard.

MSI PRO X870-P WIFI Specifications
Socket Type	AM5
Form Factor	ATX
Chipset	X870
Processor support	AMD Ryzen 9000 / 8000 / 7000 Series Processors
RAM support	DDR5 8200 (OC), up to 256GB, Dual Channel
Slots	4 x DIMM, 1 x PCIe 5.0 x16, 2 x PCIe 3.0 x16, 1 x PCIe 4.0 x16, 3 x M.2 (1 x PCIe 5.0, 2 x PCIe 4.0)
Ports / Connectors	4 x SATA 6Gb/s, 4 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 2 x USB 5Gbps Type A (Rear), 2 x USB 5Gbps Type A (Front), 2 x USB 10Gbps Type A (Rear), 1 x USB 10Gbps Type C (Front), 1 x USB 20Gbps Type C (Rear), 1 x USB 40Gbps Type C (Rear)
Features	14+2+1 DRPS POWER DESIGN (60A) VRM Solution, VRM Heatsink, 5G LAN, Wi-Fi 7, Bluetooth 5.4, Flash BIOS Button, Clear CMOS Button, 7.1-Channel High Definition Audio, Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices, Pre-installed I/O Shield, EZ M.2 Shield Frozr II (M.2 Heatsink), PCIe Steel Armor, EZ PCIe Clip II, EZ M.2 Clips II (Screwless M.2 Installation), 8-layer Server-grade PCB, Audio Boost, Dual 8-pin CPU power connectors, Core Boost, Memory Boost, ARGB and RGB Headers, AMD EXPO support
Display Output	1 x HDMI 2.1

Buy MSI PRO X870-P WIFI Motherboard

Budget X870 Motherboard from Asus

ASUS PRIME X870-P WIFI Motherboard – 14(80A) + 2(80A) + 1(80A) power stages VRM, Wi-Fi 7, Dual USB 40Gbps Type-C Ports, BIOS Flashback Button, VRM Heatsinks, M.2 Heatsinks

Best Value Mid-range X870 Motherboards

Below are the best-value mid-range and mainstream X870 motherboards, offering excellent performance and features for the price. These motherboards feature a powerful VRM solution and large VRM heatsinks to provide good cooling during mid- to high-level CPU overclocking with top-of-the-line Ryzen 9000-series processors. The motherboards listed below are more than enough to build a high-end gaming PC or a professional work PC for creators.

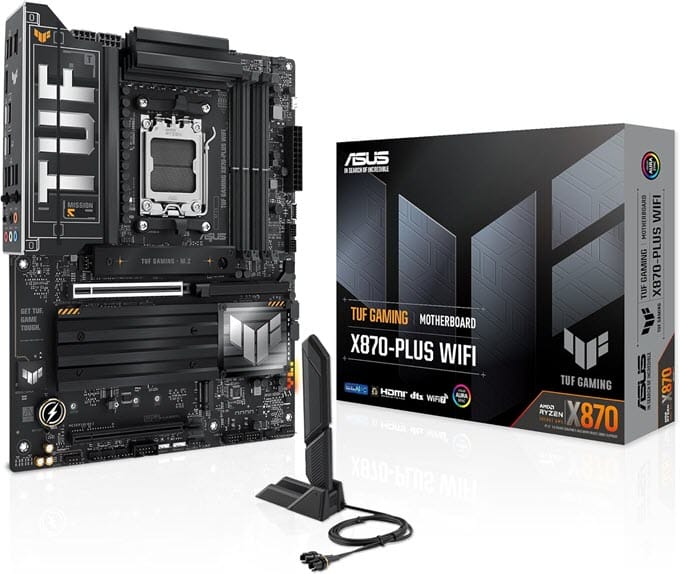

ASUS TUF GAMING X870-PLUS WIFI Motherboard

[Powerful VRM and VRM Cooling, Solid Build Quality, Wi-Fi 7, High-quality Audio, Dual USB4 Ports Type-C]

ASUS TUF GAMING X870-PLUS WIFI is a robust, durable, feature-rich, high-performance, and affordable mid-range X870 motherboard for mainstream users. The motherboard has excellent build quality and comes with two PCIe x16 slots (PCIe 5.0 and PCIe 4.0), four M.2 slots (two PCIe 5.0 and two PCIe 4.0), and has the latest features and connectivity options, including Wi-Fi 7, dual USB4 (40Gbps) Type-C ports, BIOS Flashback button, and high-quality HD Audio with five audio jacks. A slight drawback of this motherboard is that it has only two SATA 6Gbps ports, when even the budget X870 motherboards have four SATA 6Gbps ports. However, it compensates for this drawback by offering four high-speed M.2 slots for NVMe drives.

The motherboard features a power VRM solution with 16 (80A) + 2 (80A) + 1 (80A) Power Stages and enlarged, extended VRM heatsinks for superior cooling during overclocking. Display connectivity options include one HDMI 2.1 port. Below, you can check out the major specifications and key features of the motherboard.

ASUS TUF GAMING X870-PLUS WIFI Specifications
Socket Type	AM5
Form Factor	ATX
Chipset	X870
Processor support	AMD Ryzen 9000 / 8000 / 7000 Series Processors
RAM support	DDR5 8000+ MT/s (OC), up to 256GB, Dual Channel
Slots	4 x DIMM, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 4 x M.2 (2 x PCIe 5.0, 2 x PCIe 4.0)
Ports / Connectors	2 x SATA 6Gb/s, 2 x USB4 (40Gbps) USB Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x USB 20Gbps Connector (Supports USB Type-C with up to 30W PD Fast-Charge), 2 x Front USB 2.0 Headers, 1 x USB 5Gbps Header
Features	16(80A)+2(80A)+1(80A) Power Stages VRM Solution DIGI+ VRM (- Digital power design with SPS), Asus SafeSlot, Stainless-steel back I/O, Pre-mounted I/O shield, ARGB and RGB Headers (Asus Aura Sync support), 256 Mb Flash ROM, UEFI AMI BIOS, BIOS Flashback Button, 2.5G LAN, Wi-Fi 7, Bluetooth 5.4, Realtek ALC1220P 7.1 Surround Sound High Definition Audio, Extended Large VRM Heatsinks, AIO Pump Header, M.2 Heatsinks, M.2 Q-Latch, On-board Q-LED troubleshooting lights, PCIe Slot Q-Release
Display Output	1 x HDMI 2.1

Buy ASUS TUF GAMING X870-PLUS WIFI Motherboard

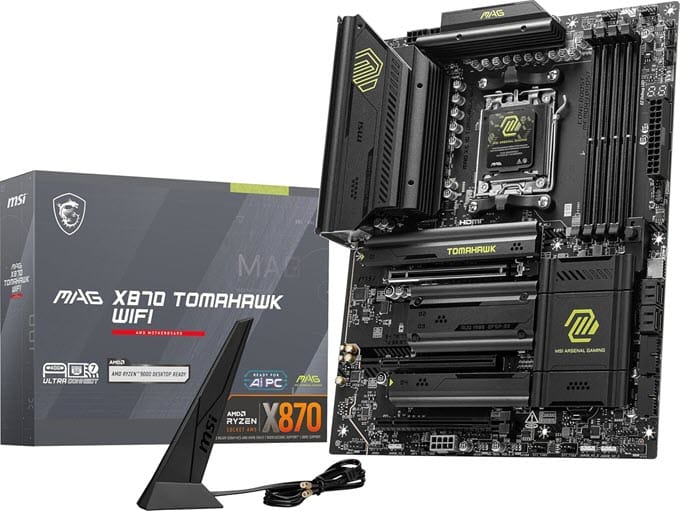

MSI MAG X870 TOMAHAWK WIFI Motherboard

[Strong VRM and Cooling, Wi-Fi 7, 5G LAN, Optical Audio, Dual USB 40G Ports, Heatsinks for all M.2 slots, 8-layer server-grade PCB]

MSI MAG X870 TOMAHAWK WIFI is one of the best X870 motherboards for your Ryzen 9000-series processor-based high-performance gaming or work PC. The motherboard offers excellent performance and features for the price. The board also has excellent build quality and uses an 8-layer server-grade PCB. The board comes with three PCIe x16 slots (PCIe 5.0, PCIe 4.0, PCIe 3.0) and four M.2 slots (two PCIe 5.0 and two PCIe 4.0) with heatsinks and has the latest features such as dual USB4 40G ports (Type-C), Wi-Fi 7, 5G LAN, and Optical S/PDIF Out Audio. The motherboard also comes with nifty features, such as the BIOS Flashback Button and the Clear CMOS Button.

The motherboard VRM Solution includes a 14+2+1 Duet Rail Power System with an 80A SPS and enlarged VRM Heatsinks to keep the VRM cool during overclocking or high loads. Display connectivity options include one HDMI 2.1 port. The major specifications and feature set are listed below.

MSI MAG X870 TOMAHAWK WIFI Specifications
Socket Type	AM5
Form Factor	ATX
Chipset	X870
Processor support	AMD Ryzen 9000 / 8000 / 7000 Series Processors
RAM support	DDR5 8400+ MT/s (OC), up to 256GB, Dual Channel
Slots	4 x DIMM, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 4 x M.2 (2 x PCIe 5.0, 2 x PCIe 4.0)
Ports / Connectors	4 x SATA 6Gb/s, 4 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 3 x USB 5Gbps Type A (Rear), 4 x USB 5Gbps Type A (Front), 2 x USB 10Gbps Type A (Rear), 1 x USB 10Gbps Type C (Rear), 1 x USB 20Gbps Type C (Front), 2 x USB 40Gbps Type C (Rear)
Features	14+2+1 Duet Rail Power System (80A), 7.1-Channel USB High Performance Audio, Wi-Fi 7, 5G LAN, Bluetooth 5.4, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices, ARGB and RGB Headers, Flash BIOS Button, Clear CMOS Button, EZ OC (one click overclocking), Large VRM Heatsink, M.2 Heatsink, Audio Boost 5, 8-layer server-grade PCB, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna, dual 8-pin CPU power connectors, MSI Mystic Light RGB Lighting support, PCIe Steel Armor II (Steel Reinforced PCIe 5.0 x16 slot)
Display Output	1 x HDMI 2.1

Buy MSI MAG X870 TOMAHAWK WIFI Motherboard

See also:

• Best Budget and Mid-range B850 Motherboards

Final Words

There is no doubt that the X870 chipset offers significant advantages over the B850 chipset in both performance and features. Also, you don’t have to buy a high-end or flagship X870 motherboard because you can get the benefits of the X870 chipset at a reasonable price in budget, mainstream, and mid-range X870 motherboards. If you have any doubts about X870 motherboards, let me know in the comments below.
